Hoffman QLINE Q1689PCD Junction Box, 160 mm H x 80 mm W x 85 mm D, OpaqueScrew Cover, NEMA 4XIP67 NEMA Rating, Polycarbonate


Description

Hoffman QLINE Junction Box, Series: Q41, 160 mm Height, 80 mm Width, 85 mm Depth, NEMA 4X/IP67 NEMA Rating, Opaque/Screw Cover, 5.16 x 2.56 in Panel, Wall Mounting, Polycarbonate, Light Gray

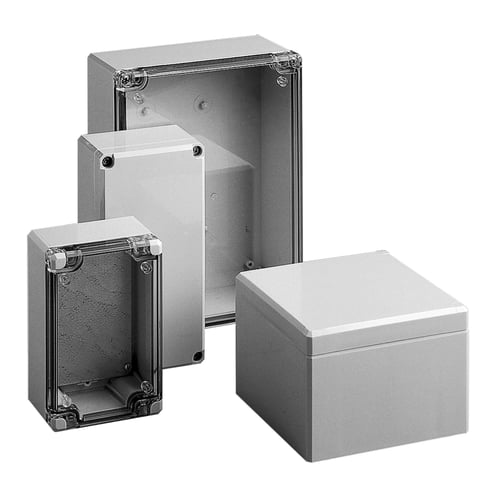

QLine D polycarbonate and ABS enclosures have contoured bodies with flush cover screws for an attractive, contemporary appearance. Tough as well as stylish, they are functional in corrosive environments and can withstand occasional submersion. The ABS series shares the same features and similar physical properties as the polycarbonate but is a more economical, non-UL rated alternative.

Features

  • Opaque and clear covers are impact-resistant polycarbonate for PCD series and ABS for ABD series
  • Polycarbonate material is easily punched, drilled, filed or sawed
  • Straight side walls permit ganging of multiple enclosures
  • Cross point captivated cover screws are stainless steel
  • Mounting holes molded directly adjacent to cover screws
  • Cover screws protected by removable caps that are aesthetic and provide tamper resistance
  • Molded internal pads for mounting optional panels, rails and other components
  • Seamless foam in place gasket assures a watertight and dust tight seal

Specifications

GTIN: 00783510138394

UNSPSC: 39121309

Country of Origin: Estonia

Color
Light Gray
Weight
10.8 lbs
Width
80 mm
NEMA Rating
NEMA 4X/IP67
Height
160 mm
Cover Type
Opaque/Screw
Mounting Type
Wall
Series
Q41
Panel Size
5.16 x 2.56 in
Material
Polycarbonate
Volume
150.3 CF
BABA Compliant
No
Depth
85 mm
Sold as
CASE
