Description

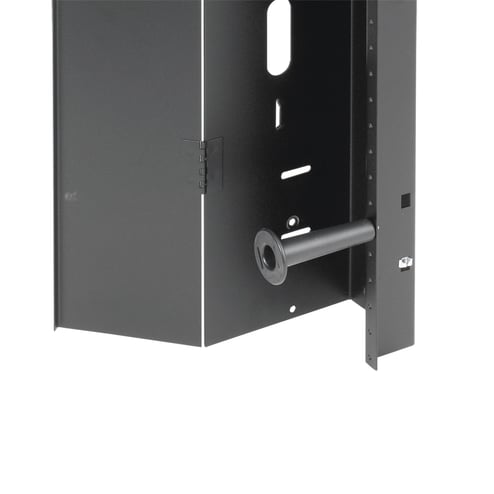

nVent HOFFMAN ProLine™ Vertical Cable Manager, Series: DPY, 3.94 in W, 6.27 in D, 73.52 in Height, For Use With: 800 mm W x 2000 mm H Cabinet, Steel, Polyester Powder Coated, Black
For routing and bundling cable inside 700 and 800 mm wide ProLine™ cabinets. Variety of sizes provides mounting flexibility. Mounts between frame and rack angle so equipment can be centered or aligned on one side. Replaces reducing brackets that bridge space between cabinet and equipment and allows front-to-back adjustment of rack angles. Latching hinged door on front conceals wiring yet allows easy access. Movable plastic spools help manage cables. 14 and 16 ga steel with RAL 9005 black polyester powder paint finish.
Features
- Movable plastic spools help manage cables
- The Vertical Cable Manager for 700- and 800-mm Wide Cabinets are used for routing and bundling cable inside 700- and 800-mm wide ProLine cabinets
- This product has a variety of sizes that provides mounting flexibility
- It mounts between the frame and rack angles so equipment can be centered or aligned on one side
- It replaces reducing brackets that bridge space between cabinet and equipment and allows front-to-back adjustment of the rack angles
- The latching hinged door on the front conceals wiring yet allows easy access while the movable plastic spools help manage cables
Specifications
GTIN: 00783510160210
UNSPSC: 39121321
Country of Origin: Mexico
| Color | Black |
|---|---|
| Weight | 0.2 lbs |
| Depth | 6.27 in |
| Series | DPY |
| Material | Steel |
| BABA Compliant | No |
| Finish | Polyester Powder Coated |
| Width | 3.94 in |
| Suitable For Use With | 800 mm W x 2000 mm H Cabinet |
| Height | 73.52 in |
| Sold as | EACH |
