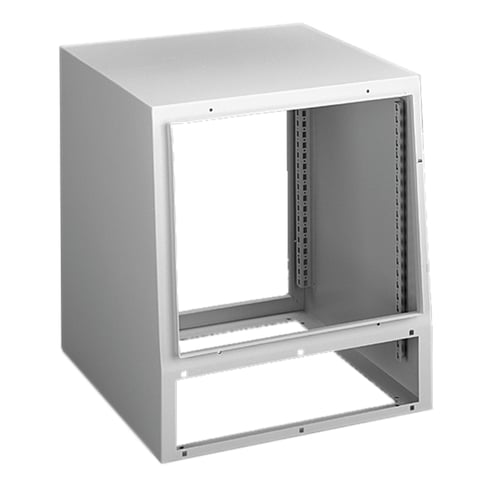

nVent HOFFMAN ProLine™ PST5A66 P9 Series Sloped Front HMI Enclosure With Accessory Opening, 500 mm L x 600 mm W x 600 mm D, NEMA 12 NEMA Rating, Steel


Description

nVent HOFFMAN ProLine™ HMI Enclosure, Sloped Front, Series: P9 Series, 500 mm Length, 600 mm Width, 600 mm Depth, NEMA 12, Steel, Powder Coated, Light Gray

A truly modular, build-your-own system, ProLine Sloped-Front HMI Enclosure with Accessory Opening foundation is extremely adaptable for nearly any application. Upper front opening for door/cover options has a 5-degree slope. Lower section is suitable for keyboard or other front options. Rear opening(s) for door and cover options. The internal mounting hole pattern accommodates most ProLine internal accessories. Optional ProLine Frame Shelf or ProLine Grid System provides a stationary platform for supporting deep equipment. The open bottom is suitable for joining the top to a 700-mm ProLine frame.

Features

  • Enclosure is available in two heights
  • The bottom of the 600x600-mm sizes can be joined through a base with cutout to a pedestal or pendant arm system

Specifications

GTIN: 00783510365097

UNSPSC: 39121325

Country of Origin: United States of America (the)

Type
Sloped Front
Color
Light Gray
Width
600 mm
Depth
600 mm
NEMA Rating
NEMA 12
Length
500 mm
Series
P9 Series
Material
Steel
Finish
Powder Coated
BABA Compliant
Yes
Sold as
PIECE
