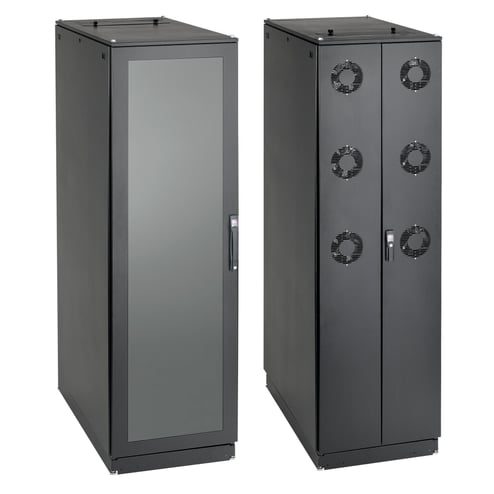

nVent HOFFMAN ProLine FLOTEK PSFD20610B DPSR Floor Ducted Voice Data Server Cabinet With Sides, 2000 mm L x 600 mm W x 1000 mm D, Steel


Description

nVent HOFFMAN ProLine FLOTEK Server Cabinet, Floor Ducted Voice Data, Series: DPSR, 2000 mm Length, 600 mm Width, 1000 mm Depth, Steel, Polyester Powder Coated/Black Oxide

The ProLine FloTek FD Server Cabinet uses the cooling power of two banks of independently-powered fans in the back of the cabinet and an integral front floor duct to direct air into server intakes when positioned over a cutout in a raised data center floor. The cabinet air inlet requires alignment with a floor cutout so blocking plates can direct cool air from the floor plenum across the front of the equipment.

Features

  • Fan bank promotes air flow through cabinet to exhaust into hot aisle
  • Independently powered fans provide redundant cooling
  • Top cover configuration allows for easy routing of network cables, pre-terminated cables and patch panels
  • Three-point locking swing handle allows for easy but controlled access
  • Common profiles allow ganging of server and networking cabinets

Specifications

GTIN: 00783510158415

UNSPSC: 43223306

Country of Origin: Mexico

Type
Floor Ducted Voice Data
Weight
6.8 lbs
Width
600 mm
Depth
1000 mm
Length
2000 mm
Series
DPSR
Material
Steel
Finish
Polyester Powder Coated/Black Oxide
BABA Compliant
No
Sold as
PIECE
