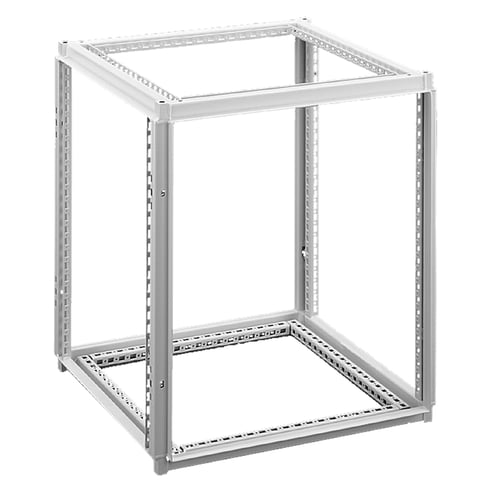

Hoffman ProLine PF766 P20 Single-Bay Frame, 700 mm H x 600 mm W x 600 mm D, For Use With ProLine Modular Enclosure and Sloped Front HMI, Steel
Hoffman ProLine PF766 P20 Single-Bay Frame, 700 mm H x 600 mm W x 600 mm D, For Use With ProLine Modular Enclosure and Sloped Front HMI, Steel
MPN PF766
ASPN HOFFPF766
UPC 783510953003
Description
Features
- Welded corners with steel corner blocks that add strength and rigidity
- 12 ga, roll formed frame sections for strength
- Rectangular frame holes are designed for metric cage nut fasteners
- Round frame holes allow numerous grounding locations using M5 thread forming screws
- Access to both sides of frame mounting holes allows standard components to be easily installed
- Provisions for slide in subpanel, rack mounting and accessory mounting
- Simple means for joining frames to create multiple bay enclosures
- An open roll formed profile design affords complete surface corrosion protection and assembly access
- Sealed mounting for all external accessories
- Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
- Flange trough collar on door and side openings deflect dust and debris away from the enclosure interior
- Integral frame channels support the full weight of the mounting subpanel (sold separately)
Specifications
GTIN: 00783510953003
UNSPSC: 39121334
Country of Origin: Mexico
| Suitable For Use With | ProLine™ Modular Enclosure and Sloped Front HMI |
|---|---|
| Color | Light Gray |
| Weight | 8 lbs |
| Width | 600 mm |
| Depth | 600 mm |
| Height | 700 mm |
| Series | P20 |
| Material | Steel |
| Finish | Polyester Powder Painted |
| BABA Compliant | No |
| Sold as | EACH |
