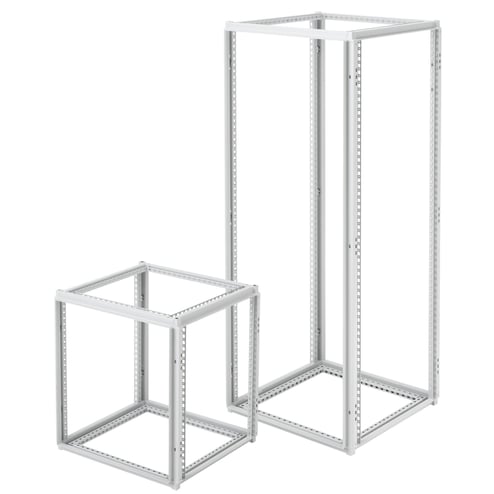

Hoffman ProLine PF2286 P20 Single-Bay Frame, 2200 mm H x 800 mm W x 500 mm D, For Use With ProLine Modular Enclosures, Steel
Hoffman ProLine PF2286 P20 Single-Bay Frame, 2200 mm H x 800 mm W x 500 mm D, For Use With ProLine Modular Enclosures, Steel
MPN PF2286
ASPN HOFFPF2286
UPC 783510960407
Description
Features
- Welded corners with steel corner blocks that add strength and rigidity
- 12 ga, roll formed frame sections for strength
- Rectangular frame holes are designed for metric cage nut fasteners
- Round frame holes allow numerous grounding locations using M5 thread forming screws
- Access to both sides of frame mounting holes allows standard components to be easily installed
- Provisions for slide in subpanel, rack mounting and accessory mounting
- Simple means for joining frames to create multiple bay enclosures
- An open roll formed profile design affords complete surface corrosion protection and assembly access
- Sealed mounting for all external accessories
- Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
- Flange trough collar on door and side openings deflect dust and debris away from the enclosure interior
- Integral frame channels support the full weight of the mounting subpanel (sold separately)
Specifications
GTIN: 00783510960407
UNSPSC: 39121334
Country of Origin: Mexico
| Suitable For Use With | ProLine™ Modular Enclosures |
|---|---|
| Color | Light Gray |
| Weight | 1 lbs |
| Width | 800 mm |
| Depth | 500 mm |
| Height | 2200 mm |
| Series | P20 |
| Material | Steel |
| Volume | 0 |
| Finish | Polyester Powder Painted |
| BABA Compliant | No |
| Sold as | EACH |
