Description

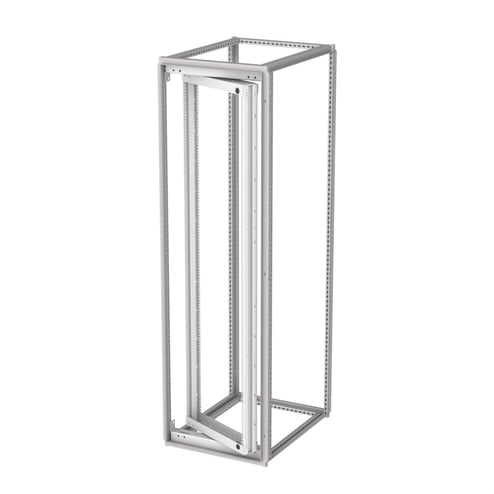

Hoffman PROLINE G2 Swing Out Rack Frame, Heavy Duty, Series: P40, For Use With: 800 mm H x 600 mm W Frames, Steel, Polyester Powder Coated, Light Gray
The PROLINE™ G2 heavy duty swing out rack frame allows 19 in rack equipment or rack panels to pivot for better accessibility. New center pivot option allows 350 deg rotation with a 400 lb (181 kg) load rating. Left or right offset option allows the frame to pivot out of the enclosure and is capable of 140 deg rotation. Hinges that provide 170 deg rotation are an optional accessory.
Features
- Deeper mounting affects the degree of opening of swing out frame
- Three pivot options for maximum flexibility (center, left, right)
- Mounts to inside of frame at any vertical location; can be located at any depth using grid straps/rail system; deeper mounting affects the degree of opening of swing-out frame
- Rack Frames are available for 600- and 800-mm wide enclosure frames; for 600-mm wide enclosures, the rack frame uses the full width; for 800-mm wide enclosures, there is 200-mm extra width and the rack frame can be installed on either side or in the cente
- Can be installed in right, left or both bays of 1200-mm wide frames using center uprights; frame reducing brackets may also be used to accommodate a variety of frame widths
- Center pivot option allows 350 deg rotation; left or right offset option allows 140 deg rotation and swings frame partially out of outer frame; optional hinges allow 170 deg rotation and swing frame completely out of outer frame
Specifications
GTIN: 00783510330149
UNSPSC: 39121334
Country of Origin: Mexico
| Type | Heavy Duty |
|---|---|
| Suitable For Use With | 800 mm H x 600 mm W Frames |
| Color | Light Gray |
| Weight | 8.3 lbs |
| Series | P40 |
| Material | Steel |
| Finish | Polyester Powder Coated |
| BABA Compliant | No |
| Sold as | EACH |
