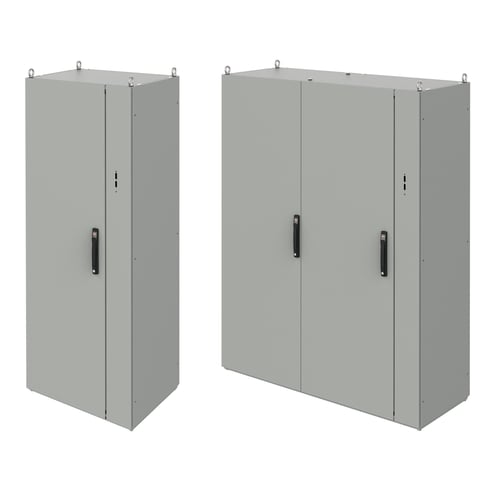

nVent HOFFMAN P2KDL2286 P41 Left Mullion PROLINE G2 Modular Disconnect Package, 2200 mm L x 800 mm W x 600 mm D, NEMA 12 NEMA Rating, Steel


Description

nVent HOFFMAN PROLINE G2 Modular Disconnect Package, Left Mullion, Series: P41, 2200 mm Length, 800 mm Width, 600 mm Depth, NEMA 12, Steel, Polyester Powder Coated, Light Gray

ProLine G2 Disconnect Packages are full-featured, ready-to-use enclosures which make it easy to create flange-mount disconnect solutions using major brand disconnect switches and circuit breakers. A hinged disconnect mullion provides unobstructed access to the interior and maximum access to the Full Mounting Subpanel (Mounting Plate). A flush swing handle with defeater operates an internal 3-point latch system on the disconnect door and latches to the disconnect mullion. Interlocking is provided from the primary door to the disconnect mullion. Side covers are included with ProLine G2 Disconnect Packages.

Features

  • Interlock from master door to mullion
  • Seamless polyurethane gasket provides a watertight, dust tight seal against moisture and contaminants
  • Mounting subpanel
  • 12 ga (2.5mm), roll-formed steel frame with welded steel corners and hybrid frame profile for superior performance under load
  • Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
  • Disconnect Frames >1000 mm include two removable center uprights (front and rear) which are offset 100 mm from the center of the frame
  • Standard right- or left-hand provision will accept the following types of flange-mounted disconnect devices
  • Right-hand disconnects have the mullion on the right, and door(s) hinged on the left; left hand disconnects have the mullion on the left, and door(s) hinged on the right; mullion door is opened via two quarter-turn cams
  • Two-door disconnect packages have a removable center upright in the front, and both doors swing in the same direction (not overlapping)

Specifications

GTIN: 00783510321567

UNSPSC: 39121334

Alternative Part Number: 32156

Country of Origin: Mexico

Color
Light Gray
Weight
4 lbs
NEMA Rating
NEMA 12
Series
P41
Material
Steel
BABA Compliant
No
Finish
Polyester Powder Coated
Length
2200 mm
Depth
600 mm
Width
800 mm
Type
Left Mullion
Sold as
EACH
