Description

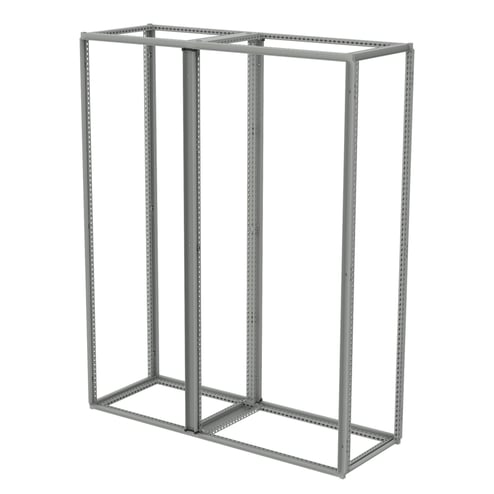

Hoffman PROLINE G2 Modular Disconnect Frame, Series: P40, 1600 mm Width, 400 mm Depth, 2000 mm Height, Steel, Polyester Powder Coated, Light Gray
ProLine G2 Disconnect Frames can be used with ProLine G2 Disconnect Doors and Disconnect components to configure a custom Disconnect Enclosure Solution from standard modular enclosure components.
Features
- 12 ga (2.5 mm) roll-formed steel with welded corners, and hybrid frame profile for superior performance under load
- Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
- Similar in design and construction as other ProLine G2 frames, but incorporates a 100-mm offset due to the presence of a 200-mm mullion door in the disconnect door solution
- Disconnect specific frame is required for any enclosure solution >1000mm in width; widths 1000mm or less utilize a standard single-bay frame
Specifications
GTIN: 00783510318352
UNSPSC: 39121334
Country of Origin: Mexico
| Color | Light Gray |
|---|---|
| Weight | 26.2 lbs |
| Width | 1600 mm |
| Depth | 400 mm |
| Height | 2000 mm |
| Series | P40 |
| Material | Steel |
| Finish | Polyester Powder Coated |
| BABA Compliant | No |
| Sold as | EACH |
