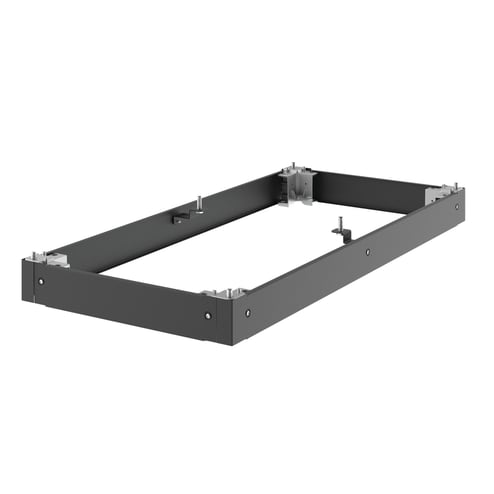

Hoffman Proline G2 P2BP1D125 P40 Disconnect Plinth Base, 18.27 in H x 47.21 in W x 3.94 in D, For Use With 1200 mm W x 500 mm D PROLINE G2 Disconnect Frames and Doors


Description

Hoffman PROLINE G2 Disconnect Plinth Base, Series: P40, 18.27 in H x 47.21 in W x 3.94 in D, For Use With: 1200 mm W x 500 mm D PROLINE G2 Disconnect Frames and Doors

PROLINE G2 disconnect components are used with PROLINE G2 disconnect frames and doors to configure a custom disconnect enclosure solution for widths and 1000 mm wide. These components are identical to the standard PROLINE G2 components (i.e. PROLINE G2 Solid Tops, Gland Plates, Mounting Subpanel) with the exception that the center support is offset 100 mm (to accommodate the hinged mullion).

Specifications

Series
P40
BABA Compliant
No
Suitable For Use With
1200 mm W x 500 mm D PROLINE™ G2 Disconnect Frames and Doors
Size
18.27 in H x 47.21 in W x 3.94 in D
Sold as
