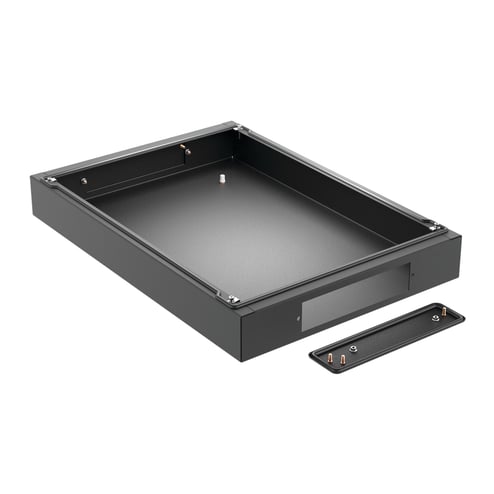

Hoffman Proline G2 P2B165 P40 Fully Sealed Solid Base, 18.3 in H x 23.6 in W x 3.94 in D, For Use With 600 mm W x 500 mm D Frames, Steel, Black


Description

Hoffman PROLINE G2 Solid Base, Fully Sealed, Series: P40, 18.3 in H x 23.6 in W x 3.94 in D, For Use With: 600 mm W x 500 mm D Frames, Steel, Polyester Powder Coated, Black

No need to use a gland plate in the base of the enclosure with the Fully-Sealed Plinth Base (100mm Solid Base), which includes fully-sealed gland plates on the sides. Solid bases can easily be joined, for convenient cable management in joined/ganged enclosures while maintaining Type 12 environmental rating.

Features

  • Maintains NEMA 12 rating without requiring gland plate
  • Seamless polyurethane gasket (UL component recognized) provides a water-tight, dust-tight seal against moisture and contaminants
  • Optional Cable Entry Gland Plate for additional cable management solutions
  • Welded corners
  • Drill points for locating casters (not included)

Specifications

GTIN: 00783510309411

UNSPSC: 39121334

Country of Origin: Mexico

Type
Fully Sealed
Suitable For Use With
600 mm W x 500 mm D Frames
Color
Black
Size
18.3 in H x 23.6 in W x 3.94 in D
Weight
0 lbs
Series
P40
Material
Steel
Finish
Polyester Powder Coated
BABA Compliant
No
Sold as
EACH
