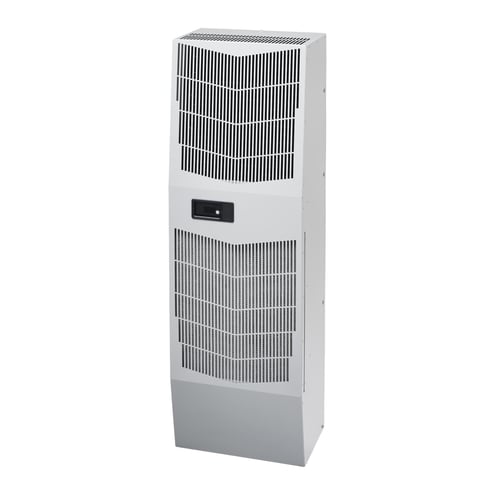

nVent HOFFMAN Spectracool™ G521246G151 MCLG IndoorOutdoor Enclosure Air Conditioner, 400460 VAC, 3.53.6 A, 5060 Hz, NEMA 1233R41213IP65IP66 Enclosure, 12000 Btuhr
nVent HOFFMAN Spectracool™ G521246G151 MCLG IndoorOutdoor Enclosure Air Conditioner, 400460 VAC, 3.53.6 A, 5060 Hz, NEMA 1233R41213IP65IP66 Enclosure, 12000 Btuhr
MPN G521246G151
ASPN HOFFG521246G151
UPC 783510211738
Description
Features
- Energy efficient rotary compressor on most models
- Attractive industrial design with minimal use of visible fasteners
- Reliable mechanical thermostat on enclosure side of the unit
- Galvanized sheet metal cover for rugged factory and outdoor environments
- Easy mount flanges for simple installation
- Dust-resistant condenser coil allows the unit to be run filterless in most applications
- Every unit functionally tested before shipping
- Dual condenser side air movers for performance redundancy
- Cleanable, reusable aluminum mesh filter included to protect coils for maximum cooling performance in dirty environments
- R407c and R134a refrigerants
- 115, 230 and 400/460 VAC 3-phase power input on most models
Specifications
GTIN: 00783510211738
UNSPSC: 40101701
Country of Origin: United States of America (the)
| Frequency Rating | 50/60 Hz |
|---|---|
| Weight | 0.1 lbs |
| Enclosure Type | NEMA 1/2/3/3R/4/12/13/IP65/IP66 |
| Dimensions | 52.69 in H x 17.12 in W x 11.66 in D |
| Volume | 0 |
| BABA Compliant | No |
| Temperature Rating | -40 to 131 deg F |
| Power Rating | 3500 W |
| Amperage Rating | 3.5/3.6 A |
| Material | Galvanized Sheet Metal |
| Connection Type | Terminal |
| Series | MCLG |
| Capacity Range | 12000 Btu/hr |
| Mounting Type | Flanged |
| Voltage Rating | 400/460 VAC |
| Color | Light Gray |
| Control Type | Basic Mechanical Thermostat |
| Type | Indoor/Outdoor |
| Sold as | EACH |
