Description

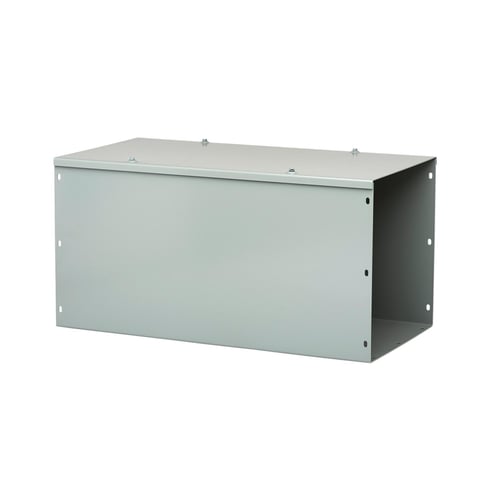

Hoffman Wireway, Lay-In Straight Section, Series: F40PF, 96 in Length, 8 in Width, 8 in Height, Hinged Cover, 1/2 to 3/4 in Knockout, NEMA 1/3R, Steel, Gray, Polyester Powder Painted
Features
- Open top assembly
- A variety of lengths and fittings provide increased design flexibility
- Removable hinged cover latches with captive screws
- 14 ga steel covers and bodies
- ANSI 61 gray polyester powder paint finish inside and out over pretreated surfaces
- Lay-in Hinged-Cover Type 1 Straight Sections are used for enclosing wire and cable in wireway runs
- No pulling through of wires or cables prevents damage to insulation that often occurs in a pull-through wiring system
- Sections are available in lengths from 12 in to 120 in, with or without knockouts
Specifications
GTIN: 00783510132873
UNSPSC: 39131710
Country of Origin: Mexico
| Type | Lay-In Straight Section |
|---|---|
| Color | Gray |
| Weight | 5 lbs |
| Width | 8 in |
| NEMA Rating | NEMA 1/3R |
| Height | 8 in |
| Length | 96 in |
| Series | F40PF |
| Material | Steel |
| Finish | Polyester Powder Painted |
| BABA Compliant | No |
| Knockout Size | 1/2 to 3/4 in |
| Cover Type | Hinged |
| Volume | 0.5 CF |
| Sold as | EACH |
