Hoffman CONCEPT™ CSPB3030 CWY Concept Swing Out Panel, 27.72 in W x 27-3/4 in H, For Use With CONCEPT™ 30 x 30 in Enclosures, Steel


Description

Hoffman CONCEPT™ Concept Swing Out Panel, Series: CWY, 27.72 in Width, 27-3/4 in Height, For Use With: CONCEPT™ 30 x 30 in Enclosures, Steel, Painted, White

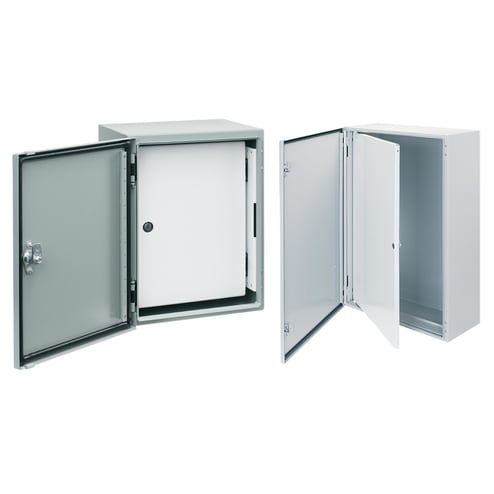

Panels swing clear from the front of the enclosure to provide access to mounted internal equipment. For CSPB panels, maximum swing is 94 degrees. For CSP panels, maximum panel swing is 106 degrees. Distance from panel surface to door when in the latched position is 1.71 in. (43 mm) for solid doors and 1.45 in. (37 mm) for window doors. Kits include panel, brackets and hardware to mount to the front flange. Panel is painted white. Swing-out panels also can be mounted on front-to-back adjustable rails. CSPB panels require adapter CSPBADB and front-to-back adjustable rails for front-to-back adjustment.

Features

  • CSP panels, maximum panel swing is 106 deg
  • Distance from panel surface to door when in the latched position is 1.71 in (43 mm) for solid doors and 1.45 in (37 mm) for window doors

Specifications

GTIN: 00783510165031

UNSPSC: 39121321

Country of Origin: United States of America (the)

Suitable For Use With
CONCEPT™ 30 x 30 in Enclosures
Color
White
Weight
1 lbs
Width
27.72 in
Height
27-3/4 in
Series
CWY
Material
Steel
Volume
51.8 cubic inches
Finish
Painted
BABA Compliant
Yes
Sold as
PIECE
