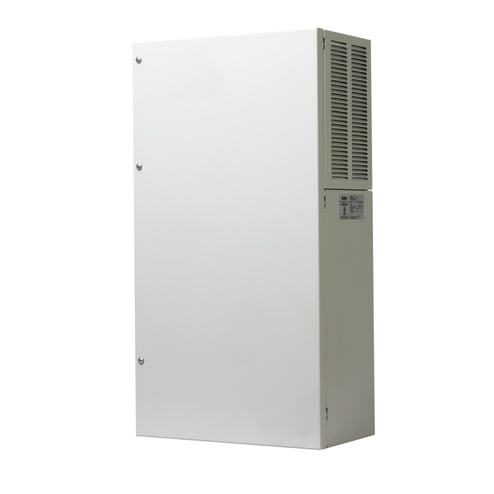

nVent HOFFMAN ProAir™ CR290446G400 MCL Indoor Sealed Enclosure Air Conditioner, 400 to 460 VAC, 2.5 A, 5060 Hz, NEMA 3R412 Enclosure, 4000 Btuhr
nVent HOFFMAN ProAir™ CR290446G400 MCL Indoor Sealed Enclosure Air Conditioner, 400 to 460 VAC, 2.5 A, 5060 Hz, NEMA 3R412 Enclosure, 4000 Btuhr
MPN CR290446G400
ASPN HOFFCR290446G400
UPC 783510223540
Description
Features
- Robust reciprocating compressor
- Easy maintenance hinged front cover allows quick access to all components, condenser coil can be cleaned while unit is still mounted to the cabinet
- UL listed or recognized to save customers time and money with agency approvals
- Attractive industrial design with minimal use of visible fasteners
- Reliable mechanical thermostat located behind the filter of the unit
- Low carbon mild steel sheet metal cover for rugged factory and outdoor environments
- Easy mount flanges for simple installation
- Cleanable reusable aluminum mesh filter protects coils for maximum cooling performance
- Every unit functionally tested before shipping
- High performance fans and blowers designed for densely packed enclosures
- R134a or R407c refrigerant
- Models for 115, 230 and 460 single phase VAC power input
- Operating temperature range from -40 F/-40 C to 131 F/55 C (with optional low-ambient package)
Specifications
GTIN: 00783510223540
UNSPSC: 40101701
Alternative Part Number: 22354
Country of Origin: United States of America (the)
| Control Type | Mechanical Thermostat |
|---|---|
| Color | Gray |
| Frequency Rating | 50/60 Hz |
| Weight | 1.3 lbs |
| Mounting Type | Side |
| Material | Steel |
| Amperage Rating | 2.5 A |
| BABA Compliant | No |
| Temperature Rating | -40 to 131 deg F |
| Power Rating | 1172 W |
| Volume | 13.8 CF |
| Connection Type | Wire Lead |
| Series | MCL |
| Capacity Range | 4000 Btu/hr |
| Dimensions | 30 x 18 x 11 in |
| Enclosure Type | NEMA 3R/4/12 |
| Voltage Rating | 400 to 460 VAC |
| Type | Indoor |
| Sold as | EACH |
