Description

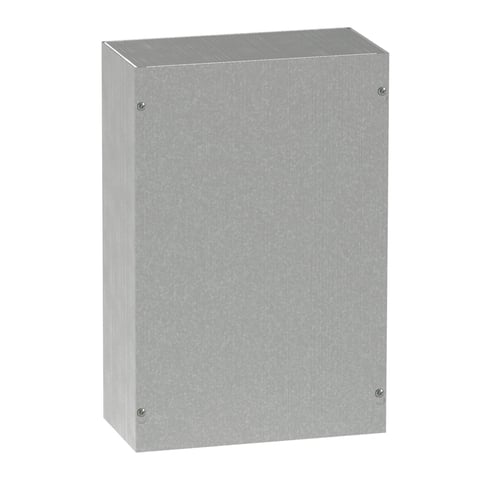

nVent HOFFMAN Pull Box, Series: A90P1, 6 in Width, 4 in Depth, 6 in Height, NEMA 1/IP30, Screw Cover, Flush Mount, Steel, Polyester Powder Painted, Gray
Use this enclosure in commercial and general industrial applications that require a junction or pull box. For flush installations, order flush covers and door frames separately.
Features
- Unique keyhole screw slots in the cover
- Available with or without knockouts
- Various sizes of easy-to-remove concentric knockouts on all four sides of standard boxes with knockouts
- Optional flush-mounted door frame available
- Flat, removable covers fastened with plated steel screws
- Provision for grounding
- Mounting holes on back of box
- Enclosures are finished with paint over plated surfaces
Specifications
GTIN: 00783510423001
UNSPSC: 39121303
Country of Origin: Mexico
| Color | Gray |
|---|---|
| Weight | 0 lbs |
| Width | 6 in |
| Depth | 4 in |
| NEMA Rating | NEMA 1/IP30 |
| Height | 6 in |
| Cover Type | Screw |
| Mounting Type | Flush |
| Series | A90P1 |
| Material | Steel |
| Volume | 358.7 cubic inches |
| Finish | Polyester Powder Painted |
| BABA Compliant | No |
| Sold as | PIECE |
