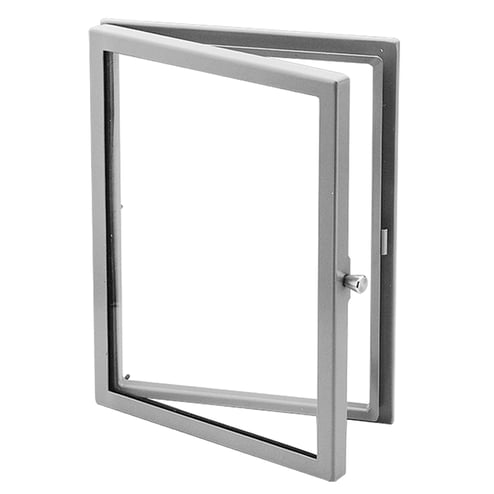

Hoffman APWK2016H A80W Hinged Window Kit, 18.28 in H x 14.28 in W, 18.44 in H x 14.44 in W Cut Out, 20 in H x 16 in W x 1.49 in D, Steel, Medium Gray, Polyester Powder Painted


Description

Hoffman Window Kit, Hinged, Series: A80W, 18.28 in H x 14.28 in W Window, 18.44 in H x 14.44 in W Cut Out, 20 in H x 16 in W x 1.49 in D, NEMA 12/IP55, Steel, Polyester Powder Painted, Medium Gray

For use as a viewing window where access to components mounted behind the window is required. Window is .25-in. (6-mm) clear polycarbonate. Easily mounted by drilling the appropriate mounting holes. All mounting hardware is provided. Continuous gaskets on all openings maintain UL Type 12 integrity. Finish is ANSI 61 gray polyester powder paint.

Features

  • Window is .25 in (6-mm) clear polycarbonate

Specifications

GTIN: 00783510197100

UNSPSC: 39121321

Country of Origin: United States of America (the)

Type
Hinged
Color
Medium Gray
Weight
21.6 lbs
NEMA Rating
NEMA 12/IP55
Window Size
18.28 in H x 14.28 in W
Series
A80W
Material
Steel
Cut Out Size
18.44 in H x 14.44 in W
Volume
104 CF
Finish
Polyester Powder Painted
Overall Dimensions
20 in H x 16 in W x 1.49 in D
BABA Compliant
Yes
Sold as
PIECE
