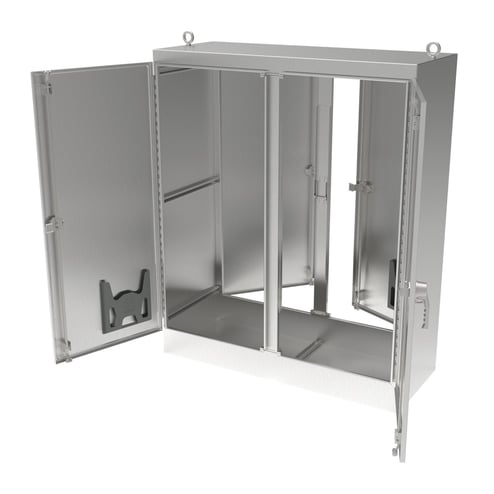

nVent HOFFMAN A904820SSFSDN4 A30S4 2-Door Single/Dual Access Enclosure, 90.06 in L x 48.06 in W x 20.06 in D, NEMA 4X/IP66 NEMA Rating, 304 Stainless Steel
nVent HOFFMAN A904820SSFSDN4 A30S4 2-Door Single/Dual Access Enclosure, 90.06 in L x 48.06 in W x 20.06 in D, NEMA 4X/IP66 NEMA Rating, 304 Stainless Steel
MPN A904820SSFSDN4
ASPN HOFFA904820SSFSDN4
UPC 783510111748
Description
Features
- Seams continuously welded and ground smooth, no holes or knockouts
- Two-door enclosures provided with a removable centerpost for easy panel installation
- Heavy-duty three-point latching mechanism operated by Type 316L stainless steel PowerGlide padlocking handle
- Seemless foam-in-place gasket assures a water-tight and dust-tight seal
- Body flange trough collar excludes liquids and contaminants
- Heavy-gauge continuous hinges support each door
- High-impact thermoplastic data pocket provided with each enclosure
- Mounting channels welded horizontally to interior body sides at top, bottom and center
- Optional panels and rack mounting angles can be mounted anywhere along channels
Specifications
GTIN: 00783510111748
UNSPSC: 39121324
Country of Origin: United States of America (the)
| Type | 2-Door Single/Dual Access |
|---|---|
| Lock | 3-Point Latch/Padlock Handle |
| Weight | 0.8 lbs |
| Width | 48.06 in |
| Depth | 20.06 in |
| NEMA Rating | NEMA 4X/IP66 |
| Length | 90.06 in |
| Cover Type | Continuous Hinged |
| Mounting Type | Freestanding |
| Series | A30S4 |
| Material | 304 Stainless Steel |
| Volume | 39744 cubic inches |
| Finish | Unpainted |
| BABA Compliant | Yes |
| Sold as | PIECE |
