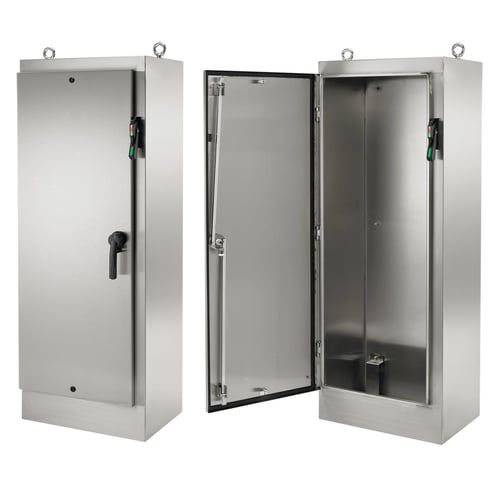

nVent HOFFMAN A72HXS3924SSLPQT A4S2 1-Door General Purpose Disconnect Enclosure, 72.13 in L x 38-1/2 in W x 24.15 in D, NEMA 4X/IP66 NEMA Rating, 304 Stainless Steel
nVent HOFFMAN A72HXS3924SSLPQT A4S2 1-Door General Purpose Disconnect Enclosure, 72.13 in L x 38-1/2 in W x 24.15 in D, NEMA 4X/IP66 NEMA Rating, 304 Stainless Steel
MPN A72HXS3924SSLPQT
ASPN HOFFA72HXS3924SSLPQT
UPC 783510191726
Description
Features
- Disconnect enabled enclosure is designed to house electronic controls
- Seams continuously welded and ground smooth
- Flange trough collar on all four sides of door openings
- Seamless foam-in-place one-piece gasket provides water-, oil- and dust-tight seal against contaminants
- Heavy-duty three-point latching mechanism on each door, operated by nVent HOFFMAN's black die-cast PowerGlide padlocking handle, back die-cast quarter-turn latches with slotted insert provided on the top and bottom of each door
- Collar studs on inside of enclosure back for optional mounting panels
- Concealed stainless steel hinges provide 180 deg door opening and allow easy door removal and cleaning of hinge area
- Heavy-duty Type 316L stainless steel lifting eyes
- Bonding provision on door, grounding stud on body
Specifications
GTIN: 00783510191726
UNSPSC: 39121324
Country of Origin: United States of America (the)
| Type | 1-Door General Purpose |
|---|---|
| Lock | 3-Point Latch/Padlock Handle |
| Weight | 0.2 lbs |
| Width | 38-1/2 in |
| Depth | 24.15 in |
| NEMA Rating | NEMA 4X/IP66 |
| Length | 72.13 in |
| Cover Type | Concealed Hinged |
| Mounting Type | Freestanding |
| Series | A4S2 |
| Panel Size | 33-3/4 in W x 60 in H |
| Material | 304 Stainless Steel |
| Volume | 11 CF |
| Finish | Unpainted |
| BABA Compliant | Yes |
| Sold as | PIECE |
