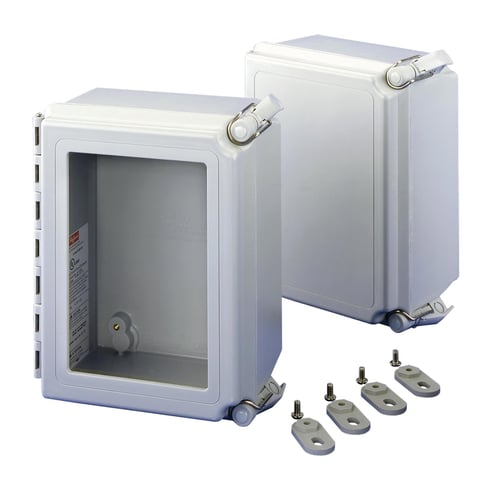

Hoffman A664CHSCFG Enclosure, 6 in H x 6 in W x 4 in D, Continuous Hinged/Screw Cover, NEMA 4X/IP66 NEMA Rating, Fiberglass
Hoffman A664CHSCFG Enclosure, 6 in H x 6 in W x 4 in D, Continuous Hinged/Screw Cover, NEMA 4X/IP66 NEMA Rating, Fiberglass
MPN A664CHSCFG
ASPN HOFFA664CHSCFG
UPC 783510296605
Description
Features
- Compression-molded fiberglass has outstanding chemical- and temperature-resistance qualities and exhibits excellent weatherability and physical properties
- Fiberglass is easily punched, drilled, filed or sawed
- Gasket assures water-tight and dust-tight seal
- Scratch-resistant polycarbonate windows are permanently bonded in place
- Molded-in-place threaded brass inserts and plated steel screws are provided for mounting optional panels and terminal block kits
- Screw-cover enclosures are secured with two captivated Type 316 stainless steel slotted cover screws
- Enclosures with quick-release latches have corrosion-resistant polyester latches located in corners that provide unobstructed access to enclosure
- Hinge pin and bail are corrosion-resistant Type 316 stainless steel
Specifications
GTIN: 00783510296605
UNSPSC: 39121324
Country of Origin: United States of America (the)
| Lock | Padlock Latch |
|---|---|
| Color | Light Gray |
| Weight | 0.1 lbs |
| Width | 6 in |
| Depth | 4 in |
| NEMA Rating | NEMA 4X/IP66 |
| Height | 6 in |
| Cover Type | Continuous Hinged/Screw |
| Mounting Type | Wall |
| Series | A48 |
| Panel Size | 4.88 x 4.88 in |
| Material | Fiberglass |
| Volume | 589.2 cubic inches |
| BABA Compliant | Yes |
| Sold as | PIECE |
