Description

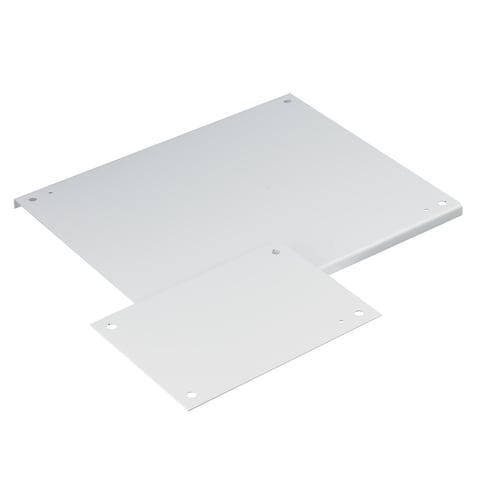

Hoffman Enclosure Panel, Series: PNLWM, 27 in Width, 45 in Height, For Use With: 48 x 30 in Type 3R/4/4X/12/13 Enclosures, Steel, Galvanized
Steel panels are 11 or 12 gauge, finished with white polyester powder paint or a conductive, corrosion-resistant coating. Larger panels have flanges on two or four sides. Some larger steel panels are 11 gauge and include extra holes for panel lifting. Aluminum panels are 5052-H32 aluminum alloy. Larger panels have flanges on four sides. Aluminum panels are protected on one side with a plastic film. Stainless steel panels are Type 316 stainless steel. Panel mounting hardware is furnished with all enclosures which accept these panels.
Features
- Larger panels have flanges on two or four sides
- Some larger steel panels are 10 ga and include extra holes for panel lifting
- Panel mounting hardware is furnished with all enclosures which accept these panels
Specifications
GTIN: 00783510163235
UNSPSC: 39121103
Country of Origin: United States of America (the)
| Material | Steel |
|---|---|
| BABA Compliant | No |
| Finish | Galvanized |
| Suitable For Use With | 48 x 30 in Type 3R/4/4X/12/13 Enclosures |
| Weight | 33.3 lbs |
| Width | 27 in |
| Height | 45 in |
| Series | PNLWM |
| Volume | 12.1 cubic inches |
| Sold as | EACH |
