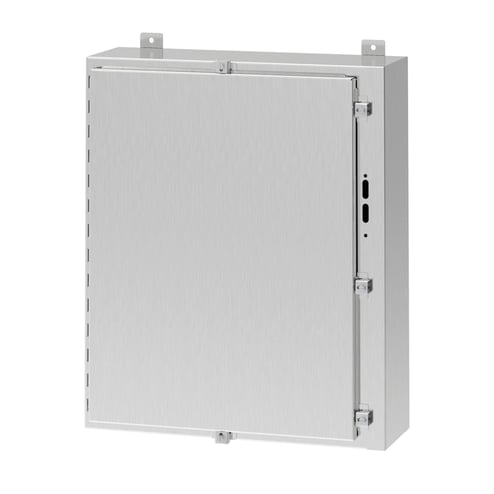

nVent HOFFMAN A42HS3712SSLP A19S Disconnect Enclosure With Clamp, 42 in L x 37.38 in W x 12 in D, NEMA 4XIP66 NEMA Rating, 304 Stainless Steel
nVent HOFFMAN A42HS3712SSLP A19S Disconnect Enclosure With Clamp, 42 in L x 37.38 in W x 12 in D, NEMA 4XIP66 NEMA Rating, 304 Stainless Steel
MPN A42HS3712SSLP
ASPN HOFFA42HS3712SSLP
UPC 783510275709
Description
Features
- 14 ga type 304 or type 316L stainless steel
- Seams continuously welded and ground smooth
- External mounting brackets, external formed flange around all sides of enclosure opening
- Door removed by pulling stainless steel continuous hinge pin
- Data pocket is high impact thermoplastic
- Seamless foam in place gasket
- Holes provided in body for mounting disconnect operating handle and operating mechanism
- Bonding provision on door, grounding stud on body
Specifications
GTIN: 00783510275709
UNSPSC: 39121324
Country of Origin: United States of America (the)
| Weight | 0.4 lbs |
|---|---|
| Width | 37.38 in |
| Depth | 12 in |
| NEMA Rating | NEMA 4X/IP66 |
| Length | 42 in |
| Cover Type | Continuous Hinged |
| Mounting Type | Wall |
| Panel Size | 33 in W x 39 in H |
| Material | 304 Stainless Steel |
| Volume | 0 |
| Finish | Brushed |
| BABA Compliant | No |
| Series | A19S |
| Sold as | EACH |
