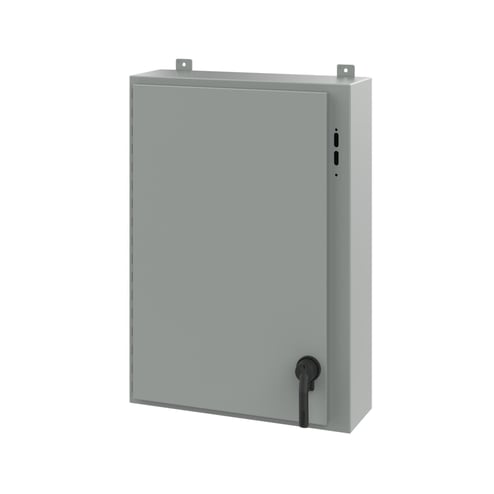

nVent HOFFMAN A36SA2608LPPL A25 Preferred Cutout Disconnect Enclosure With Handle, 36 in L x 25.38 in W x 8 in D, NEMA 1213 NEMA Rating, Steel
nVent HOFFMAN A36SA2608LPPL A25 Preferred Cutout Disconnect Enclosure With Handle, 36 in L x 25.38 in W x 8 in D, NEMA 1213 NEMA Rating, Steel
MPN A36SA2608LPPL
ASPN HOFFA36SA2608LPPL
UPC 783510403997
Description
Features
- 14 ga steel body
- Seams continuously welded and ground smooth
- Bonding provision on door
- External welded on mounting brackets for easy installation
- Removable door with continuous hinge
- Data pocket is high impact thermoplastic
- Oil-resistant gasket
- Holes in body and door for mounting disconnect operating handle, operating mechanism and door hardware
- Installation instructions provided
- External-formed flange around all sides of enclosure opening
Specifications
GTIN: 00783510403997
UNSPSC: 39121324
Alternative Part Number: 8283508
Country of Origin: United States of America (the)
| Color | Gray |
|---|---|
| NEMA Rating | NEMA 12/13 |
| Mounting Type | Wall |
| Panel Size | 21 in W x 33 in H |
| Material | Steel |
| Volume | 0 |
| Finish | Polyester Powder Coated |
| BABA Compliant | No |
| Series | A25 |
| Cover Type | Continuous Hinged/Removable |
| Length | 36 in |
| Depth | 8 in |
| Width | 25.38 in |
| Weight | 14.2 lbs |
| Type | Preferred Cutout |
| Sold as | EACH |
