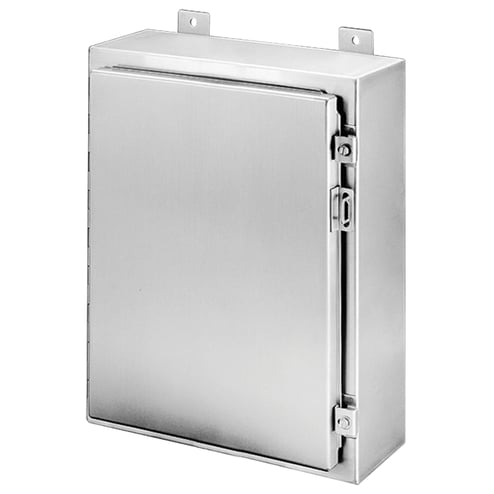

nVent HOFFMAN A30H2416SS6LP A4S Enclosure, 30 in L x 24 in W x 16 in D, NEMA 4X/IP66 NEMA Rating, 316L Stainless Steel
nVent HOFFMAN A30H2416SS6LP A4S Enclosure, 30 in L x 24 in W x 16 in D, NEMA 4X/IP66 NEMA Rating, 316L Stainless Steel
MPN A30H2416SS6LP
ASPN HOFFA30H2416SS6LP
UPC 783510838201
Description
Features
- Seams continuously welded and ground smooth
- Seamless foam-in-place gasket
- Rolled lip around three sides of door
- Data pocket is high-impact thermoplastic
- Collar studs provided for mounting optional panels
- Exterior hardware on Type 316L stainless steel enclosures matches enclosure material
- Bonding provision on door, grounding stud on body
Specifications
GTIN: 00783510838201
UNSPSC: 39121324
Country of Origin: United States of America (the)
| Lock | Hasp and Staple/Padlock |
|---|---|
| Weight | 0.2 lbs |
| Width | 24 in |
| Depth | 16 in |
| NEMA Rating | NEMA 4X/IP66 |
| Length | 30 in |
| Cover Type | Clamp/Continuous Hinged |
| Mounting Type | Wall |
| Series | A4S |
| Panel Size | 21 in W x 27 in H |
| Material | 316L Stainless Steel |
| Volume | 266.1 CF |
| Finish | Brushed |
| BABA Compliant | Yes |
| Sold as | PIECE |
