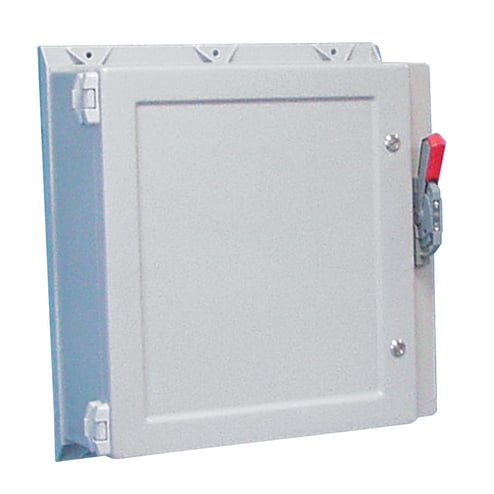

nVent HOFFMAN A24HS2412GQRLP A17WD Disconnect Enclosure, 24.19 in L x 24.19 in W x 12 in D, NEMA 4X/IP66 NEMA Rating, Fiberglass
nVent HOFFMAN A24HS2412GQRLP A17WD Disconnect Enclosure, 24.19 in L x 24.19 in W x 12 in D, NEMA 4X/IP66 NEMA Rating, Fiberglass
MPN A24HS2412GQRLP
ASPN HOFFA24HS2412GQRLP
UPC 783510132361
Description
Features
- Fiberglass-reinforced material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties
- Seams are sealed, no holes or knockouts
- Seamless foam-in-place gasket assures water-tight and dust-tight seal
- Fiberglass material is easily drilled, filed or sawed
- Doors are secured with Type 304 stainless steel slotted quarter-turn latches
- Data pocket is high-impact thermoplastic
- Copper flashed steel collar studs for mounting optional panels and terminal block kits
- Holes provided in body for mounting disconnect operating handle and operating mechanism
- Internal grounding provisions for quarter-turn latches
Specifications
GTIN: 00783510132361
UNSPSC: 39121324
Country of Origin: United States of America (the)
| Lock | Quarter Turn Slotted Latch |
|---|---|
| Color | Light Gray |
| Weight | 60.6 lbs |
| Width | 24.19 in |
| Depth | 12 in |
| NEMA Rating | NEMA 4X/IP66 |
| Length | 24.19 in |
| Cover Type | Hinged |
| Mounting Type | Wall |
| Series | A17WD |
| Panel Size | 21 x 21 in |
| Material | Fiberglass |
| Volume | 725.8 cubic inches |
| Finish | Painted |
| BABA Compliant | Yes |
| Sold as | PIECE |
