Cooper Lighting Solutions

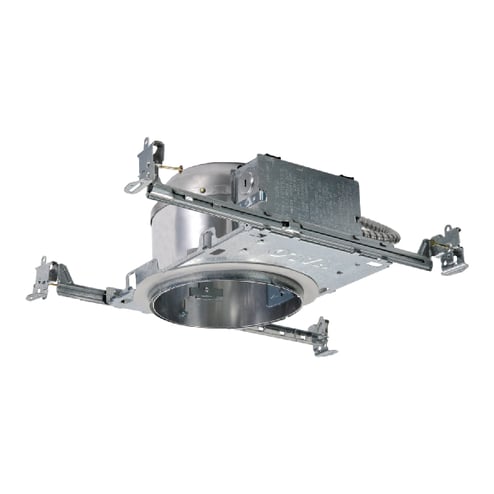

Halo H2750ICAT New Construction Shallow Recessed Lighting Housing, LED Lamp, IC Insulation, 120277 VAC, 6-12 in Ceiling Opening, Aluminum Housing


Description

Halo, H2750ICAT, Recessed Lighting Housing, New Construction Shallow, 120/277 VAC, 6-1/2 in Ceiling Opening, LED Lamp, 20 W Lamp, IC Insulation, Ceiling Mounting, For Use With: Halo 691X, 694X, 696X Series Trim, 6 in Diameter, 5-3/4 in Height, 14-1/4 in Width, 10-1/2 in Depth, Aluminum Housing Material

The Halo H2750ICAT is a dedicated 6-inch aperture LED new construction shallow IC AIR-TITE? housing for use with Halo RL7 and RL56 series LED modules and ML56 series LED modules when used with ML56 shallow trims. H2750ICAT is designed for use in insulated ceilings where it will be in direct contact with insulation. It is an AIR-TITE?, ASTM E283 tested housing designed to prevent air flow between occupied spaces and unconditioned areas. The LED connection is non-screw base to preserve the high efficacy rating of the luminaire as used with the compatible Halo or all-Pro LED modules.

Features

  • 5.033 in L recessed remodeler housing
  • Suitable for 2 x 4 framing or shallow plenum construction
  • Got-Nail™ bar hangers
  • Pass-N-Thru™ tool-less shortening of bar hangers
  • Slide-N-Side™ wire traps
  • Die-formed housing and plaster frame
  • Housing may be removed from plaster frame for junction box access

Specifications

GTIN: 00080083618163

UNSPSC: 39111505

Country of Origin: Mexico

Type
New Construction Shallow
Suitable For Use With
Halo 691X, 694X, 696X Series Trim
Voltage Rating
120/277 VAC
Lamp Type
LED
Mounting Type
Ceiling
BABA Compliant
No
Diameter
6 in
Ceiling Opening
6-1/2 in
Lamp Wattage
20 W
Insulation Type
IC
Housing Material
Aluminum
Height
5-3/4 in
Depth
10-1/2 in
Width
37.3 in
Weight
31 lbs
Sold as
EACH
