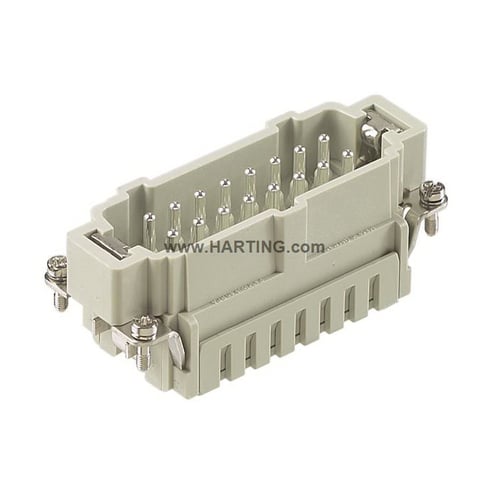

HARTING® 09 33 016 2616 Han® ES Connector Insert, 16 Positions, 26 to 14 AWG Wire, Cage Clamp/Male Connection, Polycarbonate
HARTING® 09 33 016 2616 Han® ES Connector Insert, 16 Positions, 26 to 14 AWG Wire, Cage Clamp/Male Connection, Polycarbonate
MPN 09 33 016 2616
ASPN HART09330162616
UPC 0
Description
Features
- V-0 flammability according to UL 94
- 3 deg pollution
- RAL 7032 pebble gray
- >/= 500 mating cycles
- </= 3 mOhm contact resistance
- 600 VAC rated according to UL/CSA
- Copper alloy contact material
- Silver plated contact surface
- PE contact
- 0.14 to 2.5 sq-mm conductor cross-section
Specifications
UNSPSC: 39121400
| Wire Size | 26 to 14 AWG |
|---|---|
| Color | Pebble Gray |
| Width | 0 |
| Specifications | 16 A Rated, 500 VAC Rated, 6 kV Rated Impulse, 16B Size |
| Number of Positions | 16 |
| Dimensions | 84.4 mm L x 33.4 mm W x 34 mm H |
| Series | Han® ES |
| Connection Type | Cage Clamp/Male |
| Material | Polycarbonate |
| Temperature Rating | -40 to 125 deg C |
| BABA Compliant | No |
