Description

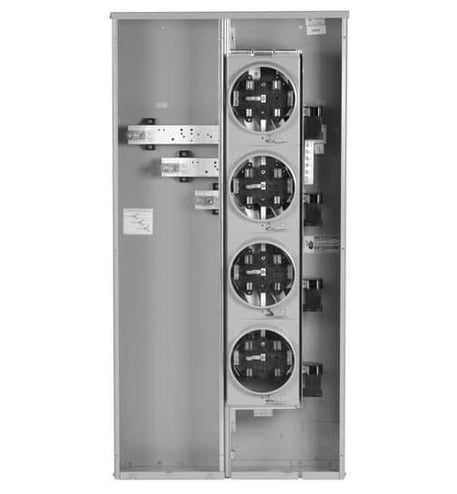

The GE Mini Mod III TMM6420R delivers reliable electrical metering for commercial and light industrial installations with a 4-socket 3-wire modular design. This 200-amp single-phase metering socket handles 120/208Y/240 VAC applications and features a NEMA 3R enclosure for outdoor use. The modular configuration supports flexible meter installation while the weatherproof housing protects against rain, sleet and ice. Built for demanding electrical distribution applications, this socket provides secure connections and accurate metering capabilities for your facility's power monitoring needs.
Mini Mod? III is a self-contained 1-phase modular metering system for multi-family or tenant dwellings, complete with main lugs and up to 6 meter sockets. All enclosures are combination indoor outdoor to maximize installation flexibility. Removable knockout backplates and endwall knockouts make service cable threading easy and fast. And all components are UL listed, with short circuit ratings up to 100 kA.
Features
- Swing away mounting feet factory installed
- 600 A horizontal bus rating
- 4 AWG to 300 kcmil service side and 14 to 4 AWG equipment ground side wire
Specifications
GTIN: 00783164194951
UNSPSC: 39121102
| Weight | 8 lbs |
|---|---|
| Enclosure Type | NEMA 3R |
| Phase | 1 |
| BABA Compliant | No |
| Amperage Rating | 200 A |
| Number of Jaws | 4 |
| Mounting Type | Z-Rail |
| Type | 4-Socket 3-Wire |
| Feed Type | Underground |
| Cover Type | Rainproof/Ring |
| Voltage Rating | 120/208Y/240 VAC |
| Terminal Type | Lug |
| Wire Size | 250 to 500 kcmil |
| Dimensions | 25.5 in W x 6.6 in D x 61 in H |
| Sold as | EACH |
