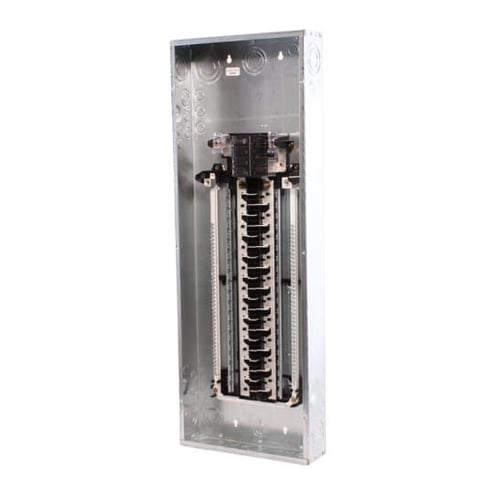

GE PowerMark Gold™ TM4020CCU TM Series 1-Phase Combination Standard Main Breaker Load Center, 120/240 VAC, 200 A, 22 kA Interrupt
GE PowerMark Gold™ TM4020CCU TM Series 1-Phase Combination Standard Main Breaker Load Center, 120/240 VAC, 200 A, 22 kA Interrupt
MPN TM4020CCU
ASPN GETM4020CCU
UPC 783164112627
Description
Features
- 60 to 70 deg C conductor rating
- Suitable for use as service entrance equipment when installed in accordance with the national electrical Code®
- TGK42 equipment ground kit order separately
- 22 kAIC RMS symmetrical, except where noted
- Box no 13
- RD go schedule
Specifications
GTIN: 00783164112627
UNSPSC: 39121101
| Type | 1-Phase Combination Standard |
|---|---|
| Interrupt Rating | 22 kA |
| Wiring Configuration | 3-Wire |
| Voltage Rating | 120/240 VAC |
| Weight | 0.1 lbs |
| Breaker Mounting | Plug-In |
| Breaker Type | THQL |
| Enclosure Type | NEMA 1 |
| Dimensions | 40.56 in H x 15.36 in W x 3.75 in D |
| Mounting Type | Plug-In |
| Bus Rating | 200 A |
| Amperage Rating | 200 A |
| Volume | 0 |
| BABA Compliant | No |
| Number of Circuits | 40 |
| Series | TM Series |
| Enclosure Box Size | 39-3/16 in H x 14 in W x 3-3/4 in D |
| Wire Size | 1 AWG to 250 kcmil Cu, 2/0 AWG to 250 kcmil Al |
| Sold as | EACH |
