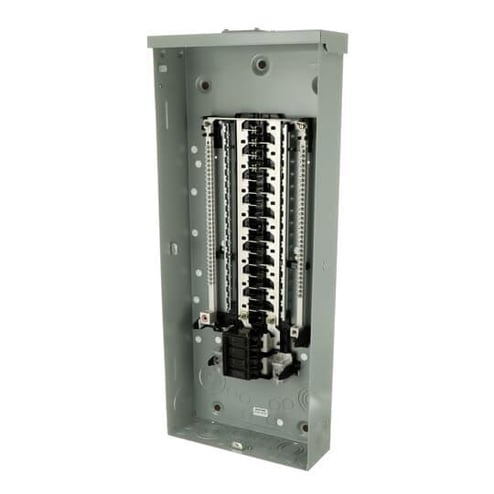

GE PowerMark Gold TM3215RCU 1-Phase Standard Main Circuit Breaker Load Center, 120/240 VAC, 150 A, 1 Pole, 22 kA Interrupt
GE PowerMark Gold TM3215RCU 1-Phase Standard Main Circuit Breaker Load Center, 120/240 VAC, 150 A, 1 Pole, 22 kA Interrupt
MPN TM3215RCU
ASPN GETM3215RCU
UPC 783164113112
Description
Features
- Suitable for use as service entrance equipment when installed in accordance with the national electrical Code®
- 6 to 42-circuit devices UL listed for bottom mounted lugs by installing complete unit (box, interior and front) upside down
- 60 to 70 deg C conductor rating
- Main lug models field convertible to main breaker
- Split neutrals extend the full length of the interior for ease of wiring
- Entire main lug line converts easily to main breaker
- Front packed in inner carton for added protection
- Straight through main wiring
- Compact box maintains optimum wire bending space
- Top feed
- Copper bus
- 1 to 3/0 AWG copper, 2 to 3/0 AWG aluminum wire range
Specifications
GTIN: 00783164113112
UNSPSC: 39121101
| Type | 1-Phase Standard |
|---|---|
| Wire Size | 1 to 3/0 AWG, 2/0 to 3/0 AWG |
| Interrupt Rating | 22 kA |
| Wiring Configuration | 3-Wire |
| Number of Poles | 1 |
| Enclosure Box Size | NEMA R7 |
| Voltage Rating | 120/240 VAC |
| Weight | 34 lbs |
| Number of Spaces | 32 |
| Breaker Type | THQL |
| Enclosure Type | NEMA 3R |
| Dimensions | 14 in W x 4-5/8 in D x 39-3/16 in H |
| Mounting Type | Surface |
| Series | TM Series |
| Number of Circuits | 32 |
| Amperage Rating | 150 A |
| BABA Compliant | No |
| Sold as | EACH |
