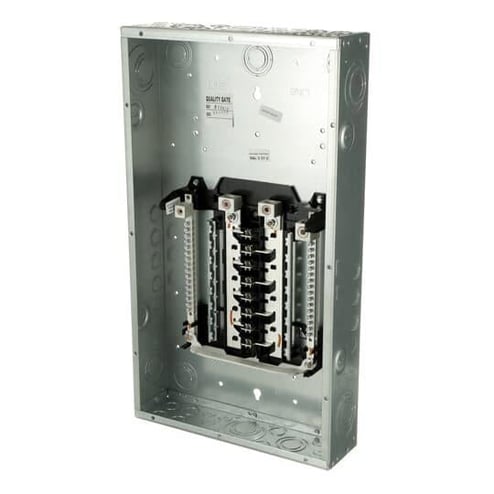

GE PowerMark Gold™ Industrial Solutions TLM1620CCU 1-Phase Standard Convertible Main Lug Loadcenter, 120/240 VAC, 200 A, 1 Pole, 22 kA Interrupt
GE PowerMark Gold™ Industrial Solutions TLM1620CCU 1-Phase Standard Convertible Main Lug Loadcenter, 120/240 VAC, 200 A, 1 Pole, 22 kA Interrupt
MPN TLM1620CCU
ASPN GETLM1620CCU
UPC 783164112382
Description
Features
- Suitable for use as service entrance equipment when installed in accordance with the national electrical Code®
- 6 to 42 circuit devices UL listed for bottom mounted lug by installing complete unit box, interior and front upside down
- 60 to 70 deg C conductor rating
- Main lug models field convertible to main breaker
- Split neutrals extend the full length of the interior for ease of wiring
- Entire main lug line converts easily to main breaker
- Front packed in inner carton for added protection
- Straight through main wiring
- Compact box maintains optimum wire bending space
- Copper busbar for excellent conductivity
- Top and bottom feed
- 42, 4, 24, 16, 20, 32, 40 - 1/2 in space
- Ground kit for top and bottom entry TGK32 (order separately)
- Combination mounting
Specifications
GTIN: 00783164112382
UNSPSC: 39121101
| Interrupt Rating | 22 kA |
|---|---|
| Wiring Configuration | 3-Wire |
| Number of Poles | 1 |
| Voltage Rating | 120/240 VAC |
| Weight | 0.2 lbs |
| Enclosure Type | NEMA 1 |
| Mounting Type | Flush |
| Series | TLM |
| Amperage Rating | 200 A |
| BABA Compliant | No |
| Breaker Type | THQL/THQP |
| Type | 1-Phase Standard |
| Number of Circuits | 16 |
| Enclosure Box Size | NEMA 7 |
| Wire Size | 6 AWG to 250 kcmil |
| Number of Spaces | 16 |
| Dimensions | 26-7/16 in H x 14 in W x 3-3/4 in D |
| Sold as | EACH |
