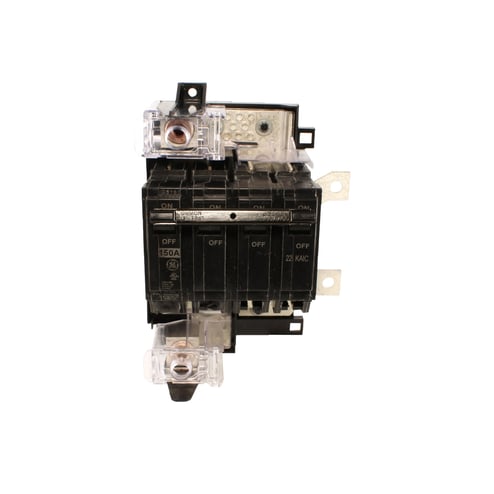

GE PowerMark Gold™ THQMV150D Type THQMV Main Circuit Breaker, 120 VAC, 150 A, 22 kA Interrupt, 2 Poles, Internal Common Trip


Description

The GE PowerMark Gold THQMV150D main circuit breaker protects electrical panels with 150-amp capacity and 22 kA interrupt rating at 120 VAC. This two-pole breaker features internal common trip mechanism for coordinated protection across both poles. The Type THQMV design integrates directly into compatible load centers, delivering reliable overcurrent protection for residential and light commercial applications. Compact construction supports efficient panel layouts while maintaining accessibility for maintenance and inspection requirements.

Features

  • 60 deg C/75 deg F conductor rating
  • Quick-make, quick-break mechanism
  • Multi-pole circuit breakers incorporate internal common trip
  • Copper aluminum wire

Specifications

GTIN: 00783164338522

UNSPSC: 39121101

Interrupt Rating
22 kA
Number of Poles
2
Voltage Rating
120 VAC
Weight
2.3 lbs
Mounting Type
Plug-In
Connection Type
Box
Phase
1
Amperage Rating
150 A
BABA Compliant
No
Temperature Rating
75 deg F
Wire Size
1 AWG to 300 kcmil, 2/0 AWG to 300 kcmil
Type
Type THQMV
Sold as
EACH
