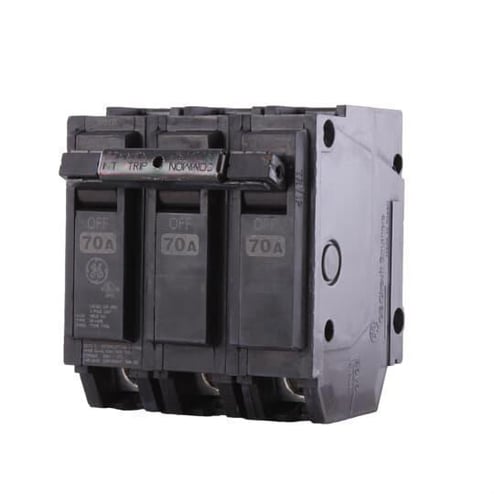

GE Q-Line THQL32070 Type THQL Compact Molded Case Circuit Breaker, 240 VAC, 70 A, 10 kA Interrupt, 3 Poles, Non-Interchangeable Thermal Magnetic/LI Trip


Description

GE Q-Line Molded Case Circuit Breaker, Type THQL Compact, 240 VAC, 70 A, 50/60 Hz Frequency, 10 kA Interrupt, Q-Line Frame, Non-Interchangeable Thermal Magnetic/LI Trip, 3 Pole, 3 ph, Pivot/Toggle Handle Actuator, Load Lug Connection, 6 to 1/0 AWG, 4 to 1/0 AWG Wire, Plug-In Mounting, 10 to 50 deg C, 3-9/32 in H x 3 in W x 2-3/8 in D Dimensions, Plastic

Q-Line? circuit breakers are 1 in wide per pole, compact, thermal magnetic devices designed for residential and commercial applications. the QL breakers are plug-in versions of the Q-Line? used for connection to loadcenters and lighting panels. all Q-Line? circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q-Line? breakers are available in 1, 2 and 3-pole versions, can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications.

Features

  • Molded case is molded from high mechanical and high dielectric strength engineered plastic
  • Trip indication is shown by handle position midway between ON and off to reset the trip mechanism, move the handle to extreme off then to ON position
  • Quick-make, quick-break, trip-free mechanism minimizes arcing during breaker operation, contacts cannot be ''teased'' into position
  • Trip-free mechanism is independent of manual handle control, the breaker trips under short circuit or overload, even though the operating handle is held in on position
  • VERIFIER™ "twist-to-trip" and ''push-to-trip'' mechanically simulates over current tripping through actuation of linkages not operated by the on-off handle
  • Common trip bar assures instant disconnect of all conductors when an overload or short circuit occurs on any one conductor in the circuit or an accessory trip device operates
  • Silver alloy contacts combine the conductive properties of silver with other elements for clean, positive electrical contacting, pitting and burning are minimized for longer contact life
  • Arc chutes of heat absorbing, insulating material and metal grid plates quickly ''extinguish'' arcs
  • UL listed lugs for copper or aluminum cable, at full frame rating, easy access and simple, straight in wiring
  • 10 kA at 120 VAC, 10 kA at 120/240 VAC, 10 kA at 240 VAC interrupt rating

Specifications

GTIN: 00783164012149

UNSPSC: 39121601

Trip Type
Non-Interchangeable Thermal Magnetic/LI
Interrupt Rating
10 kA
Number of Poles
3
Frequency Rating
50/60 Hz
Voltage Rating
240 VAC
Weight
0.5 lbs
Dimensions
3-9/32 in H x 3 in W x 2-3/8 in D
Connection Type
Load Lug
Phase
3
Material
Plastic
Amperage Rating
70 A
BABA Compliant
No
Temperature Rating
10 to 50 deg C
Mounting Type
Plug-In
Actuator Type
Pivot/Toggle Handle
Wire Size
6 to 1/0 AWG, 4 to 1/0 AWG
Type
Type THQL Compact
Frame
Q-Line
Sold as
EACH
