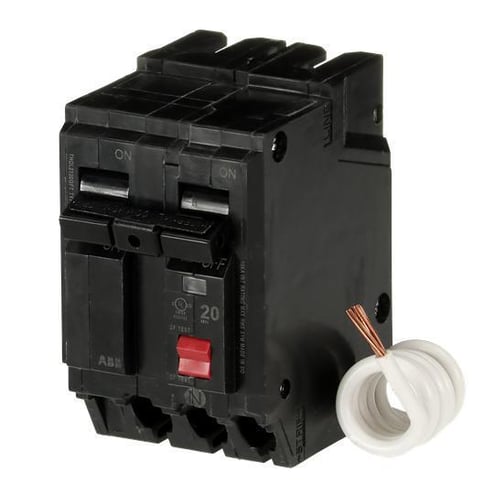

GE Q-Line THQL2120GFT Type THQL Model 3 Self-Test Ground Fault Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 2 Poles, Non-Interchangeable/LIG Trip
GE Q-Line THQL2120GFT Type THQL Model 3 Self-Test Ground Fault Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 2 Poles, Non-Interchangeable/LIG Trip
MPN THQL2120GFT
ASPN GETHQL2120GFT
UPC 783164485349
Description
Features
- The national electrical code requires GFCI protection of receptacles located outdoors, in bathrooms, garages and spa areas
- This applies not only to new construction, but also to existing homes
- When an electrical outlet is replaced in a location that requires ground fault protection, the new outlet must be GFCI protected, according to the NEC®
- The GFCI circuit interrupter provides protection against overloads, short circuits and ground faults
- It detects very low levels of electrical current leakage (ground faults) and acts quickly to shut off power, preventing serious shock
- Push button test validates the ground fault detection capability of the breaker
- Quick-make, quick-break mechanism
- Fixed long time and fixed instantaneous trip function
- Suitable for reverse feed
- Standard continuous current rated
- Feeder plug-in circuit breakers
- 60 deg C/75 deg F conductor rating
- Box type terminals
- Multi-pole circuit breakers incorporate internal common trip
Specifications
GTIN: 00783164485349
UNSPSC: 39121601
| Trip Type | Thermal Magnetic |
|---|---|
| Interrupt Rating | 10 kA |
| Number of Poles | 2 |
| Voltage Rating | 120/240 VAC |
| Mounting Type | Plug-In |
| Phase | 1 |
| Amperage Rating | 20 A |
| BABA Compliant | No |
| Dimensions | 3-9/32 in H x 2 in W x 2-3/8 in D |
| Wire Size | 14 to 8 AWG Cu, 12 to 8 AWG Al |
| Frame | Q-Line |
| Weight | 28.6 lbs |
| Trip Range | 5 mA |
| Type | Type THQL Model 3 Self-Test |
| Sold as | EACH |
