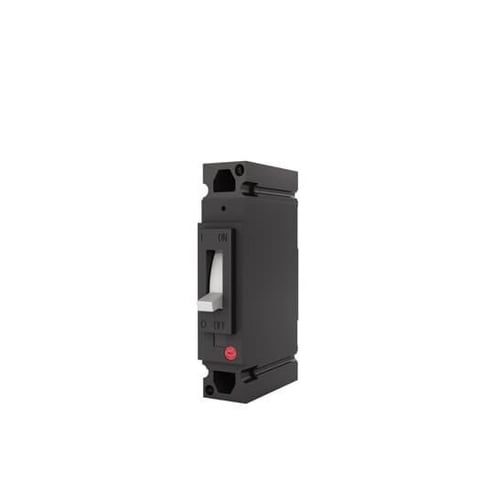

GE THED136070WL Type THED Core E High Tier Molded Case Circuit Breaker, 600 VAC, 70 A, 18 kA Interrupt, 3 Poles, LI/Non-Interchangeable Thermal Magnetic Trip
GE THED136070WL Type THED Core E High Tier Molded Case Circuit Breaker, 600 VAC, 70 A, 18 kA Interrupt, 3 Poles, LI/Non-Interchangeable Thermal Magnetic Trip
MPN THED136070WL
ASPN GETHED136070WL
UPC 783164062847
Description
Features
- Molded case is molded from high mechanical and high dielectric strength engineered plastic
- Trip indication is shown by handle position midway between On and Off to reset the trip mechanism, move the handle to extreme off then to On position
- Quick-make, quick-break, trip-free mechanism minimizes arcing during breaker operation, contacts cannot be ''teased'' into position
- Trip-free mechanism is independent of manual handle control, the breaker trips under short circuit or overload, even though the operating handle is held in on position
- VERIFIER® "twist-to-trip" and ''push-to-trip'' mechanically simulates over current tripping through actuation of linkages not operated by the On/Off handle
- Common trip bar assures instant disconnect of all conductors when an overload or short circuit occurs on any one conductor in the circuit or an accessory trip device operates
- Silver alloy contacts combine the conductive properties of silver with other elements for clean, positive electrical contacting, pitting and burning are minimized for longer contact life
- Arc chutes of heat absorbing, insulating material and metal grid plates quickly ''extinguish'' arcs
- UL listed lugs for copper or aluminum cable, at full frame rating, easy access and simple, straight-in wiring
- Proven reliability
- Provide cost effective solutions
- Multiple types to fit in your application
- 10 kA at 125 VDC, 10 kA at 250 VDC, 25 kA at 277 VAC, 25 kA at 480 VAC, 65 kA at 120/240 VAC, 65 kA at 240 VAC interrupt rating
Specifications
GTIN: 00783164062847
UNSPSC: 39121601
| Type | Type THED Core E High Tier |
|---|---|
| Wire Size | 4 to 3 AWG |
| Number of Poles | 3 |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 600 VAC |
| Weight | 0 lbs |
| Phase | 3 |
| Material | Plastic |
| BABA Compliant | No |
| Amperage Rating | 70 A |
| Connection Type | Line/Load Lug |
| Actuator Type | Pivot/Toggle Handle |
| Trip Type | LI/Non-Interchangeable Thermal Magnetic |
| Frame | E150 |
| Temperature Rating | 10 to 50 deg C |
| Dimensions | 4-1/8 in W x 3-3/8 in D x 6-5/16 in H |
| Interrupt Rating | 18 kA |
| Sold as | EACH |
