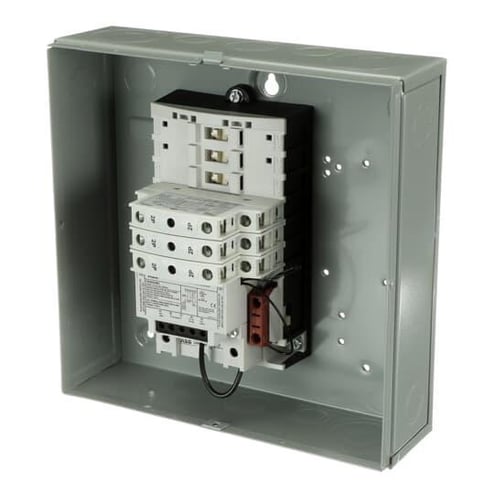

GE CR463M60CJA10A0 Mechanically Held Lighting Contactor, 115 to 120 VAC V Coil, 30 A, 6NO Contact, 6 Poles

GE Lighting Contactor, Mechanically Held, Series: CR463M, 115 to 120 VAC Coil, 30 A Maximum Load Current, 6 Pole, 60 Hz Frequency, 6NO Contact Configuration, Screw Connection, NEMA 1 Enclosure, 4.2 in W x 3.9 in D x 7.4 in H Dimensions

CR463M Mechanically Held Contactors. Standard assembled forms. Modular design permits fast, on-site configuration. 2 to 12 power poles. 30 A rating. Snap-in auxiliary contacts. Common components for both electrically and mechanically held versions. Continuously rated, interchangeable coils. Finger-safe terminals. 2 or 3-wire control module- low input VA permits long wire runs. Verifies contact status and has built-in delays that minimize excessively frequent signals from faulty controllers. Come in a wide range of input voltages. Four modules cover input voltages from 24 to 277 VAC and 12 to 24 VDC. All modules may be used with coil voltage from 24 to 277 VAC. Clear labeling shows control module rating, wire size and torque. Field configurable from standard electrically held contactor with simple, easy-to-install kits of control modules, latch mechanisms and auxiliary contacts.
