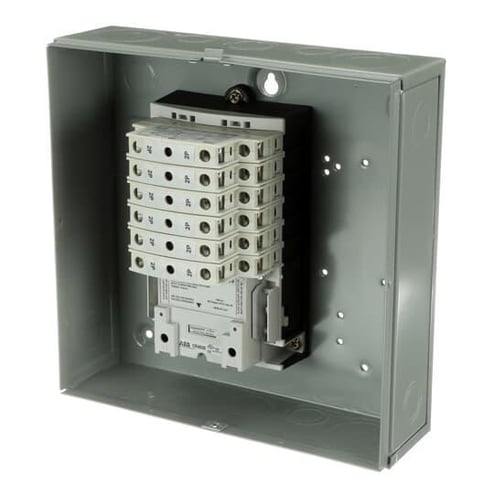

GE CR463LD0ANA10A0 Enclosed Electrically Held Lighting Contactor, 240/277 VAC V Coil, 30 A, 12NO Contact, 12 Poles

GE Lighting Contactor, Enclosed Electrically Held, Series: CR463L, 240/277 VAC Coil, 30 A Maximum Load Current, 12 Pole, 50/60 Hz Frequency, Auxiliary Contact, 12NO Contact Configuration, Finger Safe Terminal, NEMA 1 Enclosure, Surface Mounting

CR463L electrically held contactor 30 A (2 to 12-pole). Standard assembled form. Contact position indication when button protrude, contact is closed. Power pole are available as single or double pole, creating 74 different circuit combination. Convenient side access field power wiring. Contact configuration indicator. Standard base for all pole configuration. Robust pole terminal accept up to two 8 AWG wire. Manual operator. Fast, sure 3-point mounting. Enclosed contact resist contaminant for greater reliability. Combination slotted/#2 Phillips screw. Common, easily installed power pole change from NO to NC (or vice versa) simply by unlatching and rotating 180 deg. Power pole rated for the range of task, 30 A rated contact, 15 A motor rated, A600 Pilot duty rated. Easy to read rating label. Auxiliary contact, rated A600 are suitable for use on low level circuit down to 12 V, 5 mA. Plug-in auxiliary contact are NO when installed on the left side of the base, NC on the right. Finger and back of hand safe power terminal. Quick-view coil voltage. Easy change coil. Low magnetic noise results in quiet operation.
