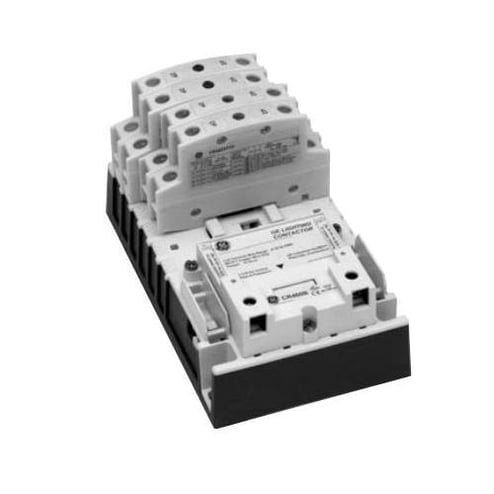

GE CR463L33AJA10A0 CR460 Series Electrically Held Standard Control Lighting Contactor, 110/115 to 120 VAC Coil, 30 A, 3NO-3NC, 6 Poles


Description

GE Lighting Contactor, Electrically Held Standard Control, Series: CR460 Series, 110/115 to 120 VAC Coil, 30 A Maximum Load Current, 6 Poles, 50/60 Hz, Auxiliary Contact, 3NO-3NC, 6 Auxiliary Contacts, A600, 10 A at 600 VAC Contact, Finger Safe Terminal, Enclosed/NEMA 1, -25 to 40 deg C Operating, Surface Mount, 10 in H x 4.62 in W x 10 in D

The ultimate in versatility, simplicity and performance. All CR460 Series lighting contactors deliver unprecedented versatility in application, simplicity in configuration and performance in operation. Their revolutionary design and unique features meet most lighting control needs better than ever before.

Features

  • Without additional auxiliary contact, 30 mm pilot device, 30 mm pilot light, control power transformer, control circuit fuse
  • Standard assembled forms
  • Modular design permits fast, on-site configuration
  • Snap-in auxiliary contacts
  • Continuously rated, interchangeable coils
  • Contact position indication when button protrudes, contact is closed
  • Convenient side access field power wiring
  • Contact configuration indicator
  • Standard base for all pole configurations
  • Robust pole terminals accept up to two #8 AWG wires
  • Manual operator, fast, sure 3-point mounting
  • Enclosed contacts resist contaminants for greater reliability
  • Combination slotted/#2 Phillips screws
  • Common, easily installed power poles change from NO to NC (or vice versa) simply by unlatching and rotating 180 deg
  • Power poles rated for the range of tasks 30 A rated contacts, 15 A motor rated, A600 pilot duty rated
  • Easy to read rating label
  • Auxiliary contacts, rated A600 are suitable for use on low level circuits down to 12 VAC, 5 mA

Specifications

BABA Compliant
No
