Description

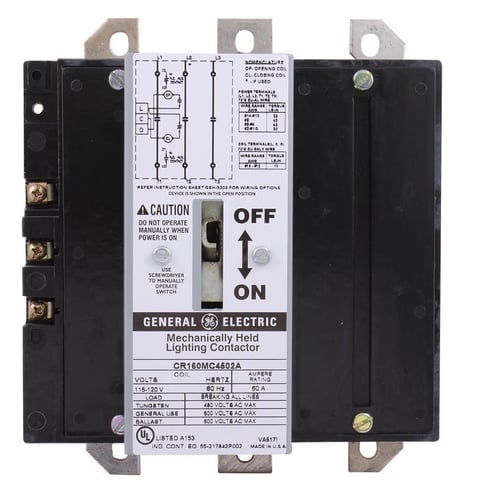

GE Lighting Contactor, Mechanically Held, Series: CR160MC, 115 to 125 VAC Coil, 60 A Maximum Load Current, 3 Poles, 60 Hz, 8.31 in H x 7.13 in W x 3.13 in D
The CR160MC mechanically held lighting contactors are designed for control of lighting loads such as tungsten, fluorescent, mercury and sodium, as well as for general non-inductive loads. The shallow type design makes these contactors particularly adaptable for wall cavity mounting applications. The silver cadmium oxide main contacts and silver tungsten arcing contacts give the devices capability of handling a wide variety of lighting loads. Built-in clearing interlocks allow control from either momentary or maintained pilot devices.
Features
- Front connected for convenient wiring
- Manually operated by screwdriver or similar tool which reduces chances of tampering
- Direct bus-mounted forms-for space savings, reduced mounting and wiring costs
- Can be mounted in enclosures that fit 6 in THK walls
- Withstand current rating 22000 A rms symmetrical at 480 VAC maximum and when used with molded case circuit breaker
- Open enclosure type, bus material
- For control of lighting loads such as tungsten, fluorescent, mercury, sodium and for general non-inductive load
Specifications
GTIN: 00783166319390
UNSPSC: 39121529
| Type | Mechanically Held |
|---|---|
| Maximum Load Current | 60 A |
| Number of Poles | 3 |
| Frequency Rating | 60 Hz |
| Weight | 0.5 lbs |
| Dimensions | 8.31 in H x 7.13 in W x 3.13 in D |
| Coil Voltage | 115 to 125 VAC |
| Series | CR160MC |
| BABA Compliant | No |
| Sold as | EACH |
