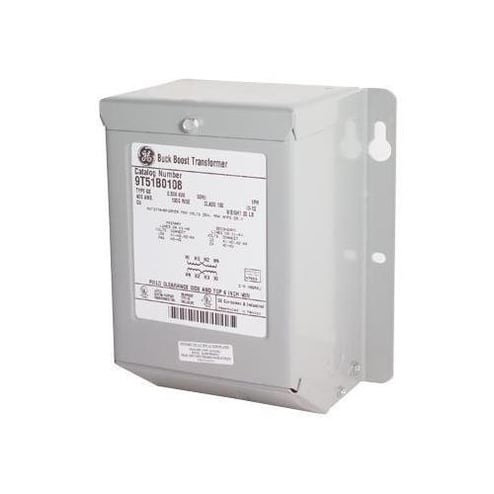

GE 9T51B0103 Type QB Dry Encapsulated Enclosed Small Standard Buck Boost Transformer, 120240 VAC Primary, 1224 VAC Secondary, 0.075 kVA Power Rating, 60 Hz, 1 ph Phase


Description

GE Buck Boost Transformer, Type QB Dry Encapsulated Enclosed Small Standard, Series: 9T51B, 120/240 VAC Primary, 12/24 VAC Secondary, 0.075 kVA, 60 Hz, 1 ph, Wire Lead, 6200 Frame, Wall Mount, Class A, NEMA 3R, 40 deg C, Silicon Steel Housing, 5.12 in W x 6.38 in H

Buck-boost transformers are small, 1-phase, dry-type distribution transformers designed and shipped as insulating/isolating transformers. They have a dual voltage primary and a dual voltage secondary. These transformers can be connected for a wide range of voltage combinations. The most common use is to buck (lower) or boost (raise) the supply voltage a small amount, usually 5 to 27%. Buck-boost transformers are in compliance with NEC article 210.9, exception 1, when field connected as an autotransformer.

Features

  • Core and coil in a NEMA 3R non-ventilated weatherproof enclosure
  • Knockouts provided on back and bottom
  • High grade silicon steel core
  • Transformers are built to standard sound level of -3 dB
  • Wiring compartment includes ground stud
  • 55 deg C temperature rise
  • K1-factor rated transformer
  • Class A insulation system
  • Mounting holes on side for easy access
  • These GE transformers feature an encapsulated core and coil in a NEMA 3R non-ventilated weatherproof enclosure
  • Electrostatically unshielded
  • For bucking and boosting voltage
  • 105 deg C insulation temperature
  • Copper windings

Specifications

BABA Compliant
No
