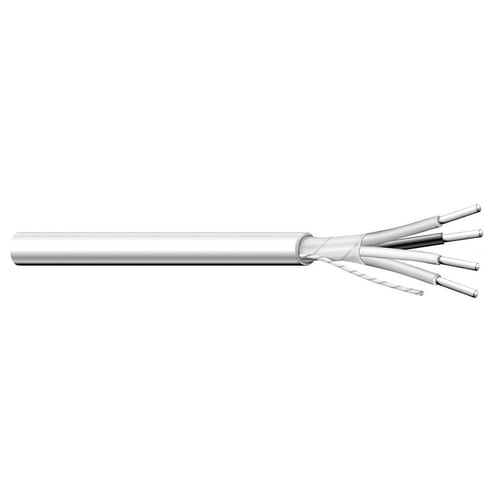

General Cable® Carol® E2104S.41.86 Type CMPCL3P Multi-Conductor Shielded Plenum Riser Cable, Reel Packaging, 300 VAC, (4) 22 AWG Bare Stranded Copper Conductor, 1000 ft L


Description

General Cable® Carol® Riser Cable, Type CMP/CL3P Multi-Conductor Shielded Plenum, Reel Packaging, 300 VAC, 4 Conductors, Bare Stranded Copper Conductor, 22 AWG Conductor, 0.147 in OD, 1000 ft Length, 7/30 Strands, Flexguard® PVC Insulation, Flexguard® PVC Jacket, Natural Jacket, 0 to 75 deg C

General Cable® Carol® brand is the right solution for alarm and security wire and cable. Carol® offers as broad an offering as anyone in the industry. There are seven basic areas where alarm and security cables are used. General Cable® has the right product to serve every application, including: access control, video surveillance/CCTV, component video, lighting control and touch panel systems, fire alarm and life safety, home theater and burglar alarms. Our alarm and security cables offer solutions in all major security applications markets, including: commercial buildings, residential housing, business and office campus environments, public stadiums and arenas, airport, train, bus and other transportation hubs and schools, colleges and universities.

Features

  • Sequential footage marked to facilitate installation
  • Premium grade, color coded Flexguard® PVC insulation
  • Stranded/solid bare copper per ASTM B-3, B-8 and B-286
  • Overall Flexfoil® polyester supported aluminum foil and stranded tinned copper drain wire shield
  • Stranded tinned copper drain wire
  • Premium grade, natural Flexguard® PVC jacket

Specifications

GTIN: 00079407831302

UNSPSC: 26121642

Alternative Part Number: 7685560

Packaging Type
Reel
Number of Conductors
4
Strands
7/30
BABA Compliant
No
Temperature Rating
0 to 75 deg C
Length
1000 ft
Voltage Rating
300 VAC
Conductor Type
Bare Stranded Copper
Insulation Material
Flexguard® PVC
Jacket Material
Flexguard® PVC
Outside Diameter
0.147 in
Type
Type CMP/CL3P Multi-Conductor Shielded Plenum
Conductor Size
22 AWG
Jacket Color
Natural
Sold as
REEL
