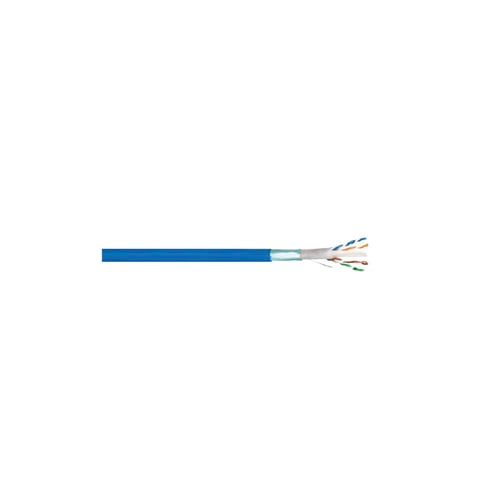

GenSPEED® 6 6131785 Type CMP Cat 6 Plenum Cable, Spool Packaging, (4 Pairs) 23 AWG FUTPScTP Annealed Bare Solid Copper Conductor, 1000 ft L


Description

GenSPEED® 6 Cable, Type CMP Cat 6 Plenum, Spool Packaging, 4 Pairs Conductors, F/UTP/ScTP Annealed Bare Solid Copper Conductor, 23 AWG Conductor, 0.298 in OD, 1000 ft Length, 9.38 Ohm Resistance, Fluoropolymer Insulation, PVC Jacket, Blue Jacket, -20 to 90 deg C

For more than a century and a half, General Cable® has stayed ahead of the industry's changing needs with products that meet future performance requirements and provide the best value in cabling solutions. We offer a complete line-up of GenSPEED® brand category 6 cables to meet all your networking needs. Our "standard, enhanced, premium" strategy allows you to choose a cable that meets your bandwidth needs for each application you deploy. All GenSPEED® category 6 cables are made in the U.S.A., third-party verified for guaranteed performance and conform to ANSI/TIA/EIA 568-C.2 standards. They are offered in a variety of colors, feature TRU-Mark® sequential footage marking and can be shipped in general Cable's easy-to-use Pull-Pac® or Spool-Pac® cartons or on a spool. When you need a reliable datacom cable with warranty assurance, choose from the series of GenSPEED® brand category 6 Cables.

Features

  • Foil shield reduces electromagnetic interference (EMI) for optimal performance
  • Performance guaranteed to 250 MHz
  • Improved cable temperature rating for greater protection against increased operating temperatures and for high wattage application
  • TRU-Mark® print legend contains footage marking from 1000 to 0 ft
  • Polyester backed aluminum foil shield
  • Low smoke, flame-retardant plenum jacket
  • 4% maximum individual pair DC resistance unbalance
  • 45 ns/100 m maximum nominal delay skew
  • 70% speed of light nominal velocity of propagation
  • Blue-white/blue for pair 1, orange-white/orange for pair 2, green-white/green for pair 3 and brown-white/brown for pair 4 color code for conductor

Specifications

UNSPSC: 26121600

Country of Origin: United States of America (the)

Jacket Material
PVC
Weight
4.4 lbs
Length
1000 ft
Number of Conductors
4 Pairs
Temperature Rating
-20 to 90 deg C
BABA Compliant
No
Resistance
9.38 Ohm
Jacket Color
Blue
Conductor Size
23 AWG
Conductor Type
F/UTP/ScTP Annealed Bare Solid Copper
Insulation Material
Fluoropolymer
Outside Diameter
0.298 in
Packaging Type
Spool
Type
Type CMP Cat 6 Plenum
