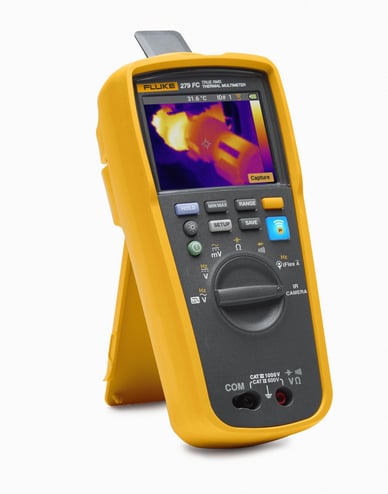

Description
Fluke Thermal Multimeter, 1000 VAC, 0.1 to 2500 A, 0.01 to 99.99 Hz, 0.1 Ohm to 50 MOhm, Safety Rating: CAT III 1000 V/CAT IV 600 V, 1 nF to 9999 uF, LCD, BP500 Lithium-Ion Battery, Bluetooth/USB Interface, 8.5 in L x 3.7 in W x 2.3 in H, 14 to 122 deg F
Features
- Full featured multimeter with built in thermal imager
- 15 measurement functions including voltage AC/DC, resistance, continuity, capacitance, diode test, min/max/avg, current AC with included iFlex current probe, frequency
- Low pass filter for troubleshooting adjustable speed drives
- Thermal imaging reveals hots spots that may indicate electrical issues quickly and safely
- Two in one tool is designed to increase productivity
- Save measurements and images while communicating wirelessly with a smart phone up to 20 ft/6.1 m away
- 102 x 77 image resolution offers immediate visual cues of hot, potentially troublesome areas
- Rechargeable lithium ion battery allows for a full work day (10+ hr) under normal conditions
- Auto power Off to save battery power
- Designed for durability, built to withstand a 3 m drop, double insulated with raised rubber holster for increased protection
Specifications
GTIN: 00095969794466
UNSPSC: 41113630
Country of Origin: United States of America (the)
| Capacitance | 1 nF to 9999 uF |
|---|---|
| Frequency Rating | 0.01 to 99.99 Hz |
| Voltage Rating | 1000 VAC |
| Battery Type | BP500 Lithium-Ion |
| Safety Rating | CAT III 1000 V/CAT IV 600 V |
| Dimensions | 8.5 in L x 3.7 in W x 2.3 in H |
| Resistance | 0.1 Ohm to 50 MOhm |
| Interface | Bluetooth/USB |
| Amperage Rating | 0.1 to 2500 A |
| Temperature Rating | 14 to 122 deg F |
| Display Type | LCD |
| BABA Compliant | No |
| Sold as | BOX |
