Description

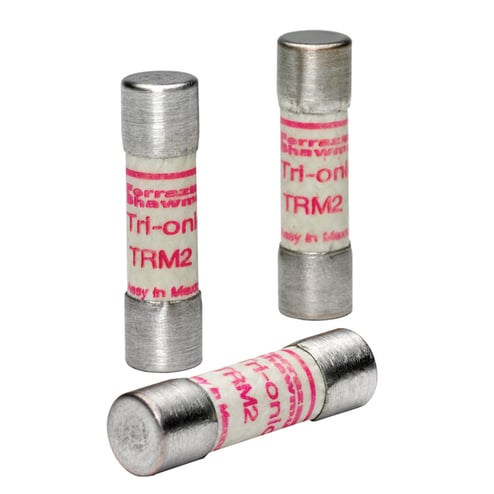

Ferraz Shawmut Time Delay Fuse, Low Voltage, Series: TRM, Rejection/Non-Rejection: Non-Rejection, 10 A, 250 VAC, 10 kA Interrupt, Class: Midget, 1.4 s Response, Ferrule Terminal, Clip Mount, Cylindrical Body, Poly Tube, 13/32 in Dia x 1-1/2 in L Body Size
Tri-Onic® TRM time delay midget fuses are rated 250 VAC and are offered in 36 ampere ratings from 1/10 to 30 A. They have 12 sec time delay at 200% rating to provide supplemental protection of small motors, small transformers and other high inrush loads, plus many other 250 volt applications. (Not for Branch Circuit Protection).
Features
- Numerous ratings for a wide variety of applications
- Time-delay for circuits with high inrush current
- Tin-plated copper contact
- Can be used with UltraSafe™ fuse holders
Specifications
GTIN: 00782001746575
UNSPSC: 39121609
Country of Origin: Mexico
| Type | Low Voltage |
|---|---|
| Terminal Type | Ferrule |
| Interrupt Rating | 10 kA |
| Body Type | Cylindrical |
| Voltage Rating | 250 VAC |
| Weight | 3.5 lbs |
| Class | Midget |
| Mounting Type | Clip |
| Body Size | 13/32 in Dia x 1-1/2 in L |
| Series | TRM |
| Material | Poly Tube |
| Amperage Rating | 10 A |
| Volume | 160.7 CF |
| Rejection/Non-Rejection | Non-Rejection |
| Response Time | 1.4 s |
| BABA Compliant | No |
| Sold as | EACH |
