Description

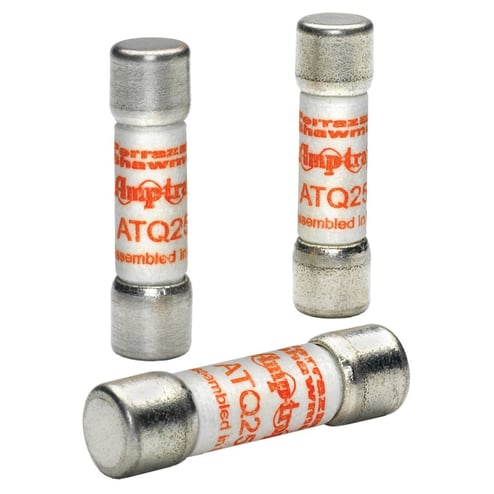

Mersen Amp-Trap® Time Delay Fuse, Low Voltage, Series: ATQ, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 1.6 A, 500 VAC, 10 kA Interrupt, Class: Midget, Ferrule Terminal, Clip Mount, Cylindrical Body, Dual Element, Fiber, 13/32 in Dia x 1-1/2 in L Body Size
Amp-Trap? ATQ midget time delay fuses are rated a full 500 VAC with 42 A ratings from 1/10 to 30 A. They are an excellent choice for supplemental protection of circuits up to 30 A where the available short circuit current does not exceed 10,000 A. (Not for Branch Circuit Protection).
Features
- Numerous ratings for a wide variety of applications up to 500 VAC
- Time-delay (12 sec at 200% rating) for circuits with high inrush current
- Tin-plated copper contact
- Can be used with UltraSafe™ fuse holders
Specifications
GTIN: 00782001903527
UNSPSC: 39121609
Alternative Part Number: 7710046, Grainger - 4ZCK7
| Type | Low Voltage |
|---|---|
| Terminal Type | Ferrule |
| Interrupt Rating | 10 kA |
| Body Type | Cylindrical |
| Element | Dual |
| Voltage Rating | 500 VAC |
| Class | Midget |
| Mounting Type | Clip |
| Body Size | 13/32 in Dia x 1-1/2 in L |
| Series | ATQ |
| Indicating/Non-Indicating | Non-Indicating |
| Material | Fiber |
| Amperage Rating | 1.6 A |
| Rejection/Non-Rejection | Non-Rejection |
| BABA Compliant | No |
| Sold as | EACH |
