Description

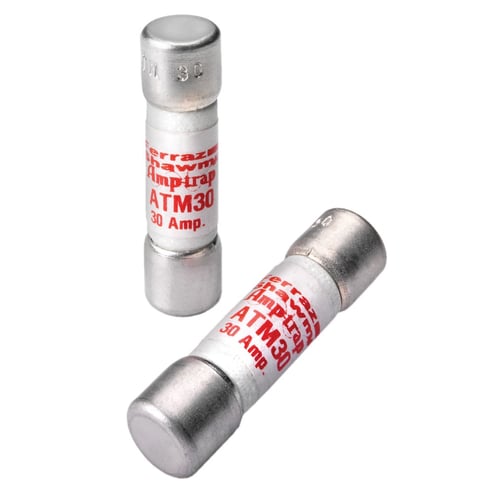

Mersen Amp-Trap Fast Acting Fuse, Low Voltage, Series: ATM, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 0.1 A, 600 VAC/VDC, 100 kA Interrupt, Class: Midget, 45 s Response, Ferrule Terminal, Clip Mount, Cylindrical Body, Single Element, Fiber, 13/32 in Dia x 1-1/2 in L Body Size
Amp-Trap? midget fast acting ATM fuses are rated 600 volts AC and DC, with a 100 kA interrupting rating. These ratings give the ATM a wide range of applications not covered by other midget fuses. In addition, ratings of 30/35, 30/40 and 30/50 A are offered for specific applications such as capacitor protection. These ATM fuses must still be considered 30A fuses because of their dimensions, but are able to withstand much higher inrush currents and tougher duty cycles. (Not for Branch Circuit Protection).
Features
- Extended ratings for special protection of capacitors and circuits with high inrush currents
- 600 VDC ratings for a wide variety of applications including photovoltaic and solar applications
- Tin-plated copper contact
- Can be used with UltraSafe™ fuse holders
Specifications
GTIN: 00782001900649
UNSPSC: 39121609
Country of Origin: Mexico
| Type | Low Voltage |
|---|---|
| Weight | 0.1 lbs |
| BABA Compliant | No |
| Indicating/Non-Indicating | Non-Indicating |
| Mounting Type | Clip |
| Body Type | Cylindrical |
| Terminal Type | Ferrule |
| Series | ATM |
| Interrupt Rating | 100 kA |
| Rejection/Non-Rejection | Non-Rejection |
| Element | Single |
| Class | Midget |
| Voltage Rating | 600 VAC/VDC |
| Body Size | 13/32 in Dia x 1-1/2 in L |
| Material | Fiber |
| Amperage Rating | 0.1 A |
| Response Time | 45 s |
| Sold as | EACH |
