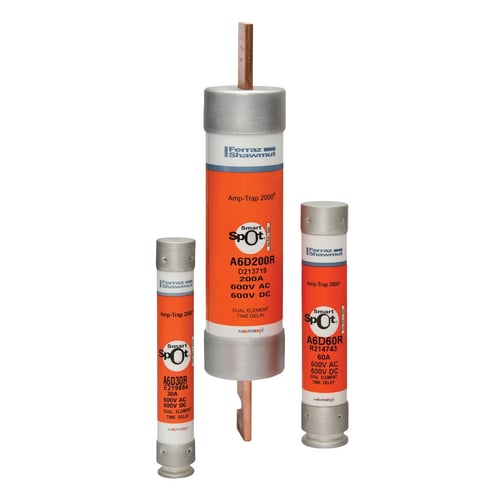

Mersen AMP-TRAP 2000 SmartSpot A6D35R Current Limiting Low Voltage North American Time Delay Power Fuse, 35 A, 600 VAC, 200 kA Interrupt, RK1 Class, Cylindrical Body
Mersen AMP-TRAP 2000 SmartSpot A6D35R Current Limiting Low Voltage North American Time Delay Power Fuse, 35 A, 600 VAC, 200 kA Interrupt, RK1 Class, Cylindrical Body
MPN A6D35R
ASPN FERA6D35R
UPC 782001992002
Description
Features
- Solid state SmartSpot® indicator
- Time delay for motor starting and transformer inrush currents without nuisance opening
- 300 kA interrupting rating, self certified (UL witnessed)
- Extremely current limiting for low peak let-thru current
- Easy 2-to-1 selectivity for prevention of nuisance shutdowns and "blackouts"
- Rejection style design prevents replacement errors (when used with recommended fuse blocks)
- High visibility orange label gives instant recognition
- Reduced inventory by taking the place of class RK5, K and H fuses
- Metal embossed date and catalog number for easier traceability and lasting identification
- Fiberglass body provides dimensional stability in harsh industrial settings
- High grade silica filler ensures fast arc quenching
- Recommended for arc flash energy reduction
- A6D-R fuses will open fast enough under extreme fault conditions for maximum short
- Plated terminals
- Arc flash mitigating
- Tin-plated copper contact
Specifications
GTIN: 00782001992002
UNSPSC: 39121606
Country of Origin: Mexico
| Type | Current Limiting Low Voltage North American Time Delay |
|---|---|
| Terminal Type | Ferrule |
| Interrupt Rating | 200 kA |
| Body Type | Cylindrical |
| Element | Dual |
| Voltage Rating | 600 VAC |
| Class | RK1 |
| Mounting Type | Clip |
| Body Size | 1-1/16 in Dia x 5-1/2 in L |
| Series | A6D-R |
| Indicating/Non-Indicating | Indicating |
| Material | Fiberglass |
| Amperage Rating | 35 A |
| Rejection/Non-Rejection | Rejection |
| BABA Compliant | No |
| Sold as | EACH |
