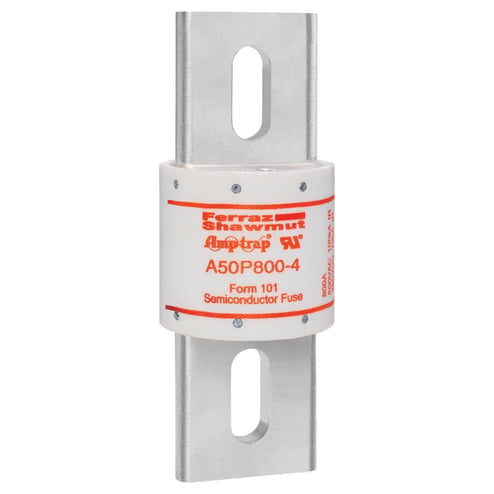

Mersen AMP-TRAP® A50P800-4 Current Limiting Fast Acting Semiconductor Fuse, 800 A, 500 VAC, 100 kA Interrupt, Cylindrical Body


Description

Mersen AMP-TRAP® Semiconductor Fuse, Current Limiting Fast Acting, Series: A50P, Non-Rejection, 800 A, 500 VAC, 100 kA Interrupt, 10 ms Response, Blade Terminal, Bolt Mounting, Cylindrical Body, Fiber, 2.5 in Dia x 6.47 in L Body

A50P AMP-TRAP? form 101 semiconductor protection fuses were developed for DC drives, uninterruptable power supplies and similar applications requiring better protection (lower I2t) and superior reliability. The A50P is typically used for replacement.

Features

  • Low I2T minimizes damage to protected components on short circuit
  • Controlled arc voltage reduces stress to circuit components during fuse clearing
  • Choice of mounting types helps in equipment design
  • North American round style
  • Tin-plated copper contact

Specifications

GTIN: 00782001946302

UNSPSC: 39121628

Country of Origin: Mexico

Type
Current Limiting Fast Acting
Terminal Type
Blade
Interrupt Rating
100 kA
Body Type
Cylindrical
Voltage Rating
500 VAC
Weight
36.4 lbs
Mounting Type
Bolt
Body Size
2.5 in Dia x 6.47 in L
Series
A50P
Material
Fiber
Amperage Rating
800 A
Rejection/Non-Rejection
Non-Rejection
Response Time
10 ms
BABA Compliant
No
Sold as
EACH
