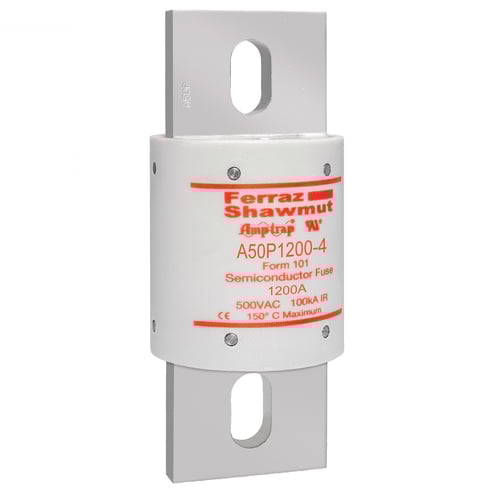

Mersen AMP-TRAP A50P1200-4 Current Limiting High Speed North American Style Very Fast Acting Semiconductor Fuse, 1200 A, 500 VAC, 100 kA Interrupt, Class: Form 101, Cylindrical/Round Body


Description

Mersen AMP-TRAP Semiconductor Fuse, Current Limiting High Speed North American Style Very Fast Acting, Series: A50P, Non-Rejection, 1200 A, 500 VAC, 100 kA Interrupt, Class: Form 101, 10 ms Response, Blade Terminal, Bolt-In Mounting, Cylindrical/Round Body, GMG, 3 in Dia x 6.97 in L Body

A100P AMP-TRAP?, form 101 semiconductor protection fuses are rated 1000 VAC, extending the range of protection for UPS systems, AC and DC drives, reduced voltage motor starters and similar applications where lower I2t and superior reliability are needed. With ratings from 15 through 1000 A, a wide range of high voltage applications can be served.

Features

  • Low I2t minimizes damage to protected components on short circuit
  • Controlled arc voltage reduces stress to circuit components during fuse clearing

Specifications

GTIN: 00782001949594

UNSPSC: 39121628

Country of Origin: Mexico

Interrupt Rating
100 kA
Weight
13 lbs
Material
GMG
Amperage Rating
1200 A
Rejection/Non-Rejection
Non-Rejection
BABA Compliant
No
Response Time
10 ms
Series
A50P
Body Size
3 in Dia x 6.97 in L
Mounting Type
Bolt-In
Class
Form 101
Voltage Rating
500 VAC
Body Type
Cylindrical/Round
Terminal Type
Blade
Type
Current Limiting High Speed North American Style Very Fast Acting
Sold as
EACH
