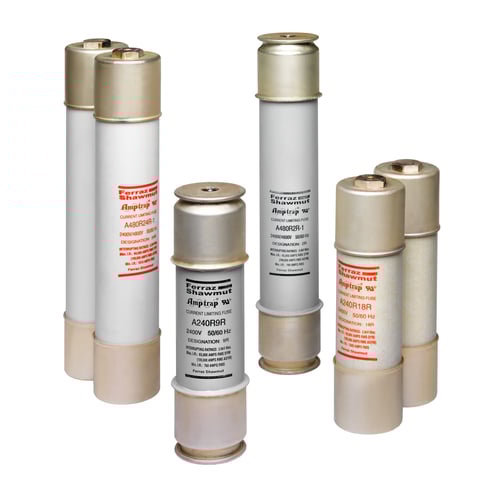

Mersen AMP-TRAP A480R18R-1HE 2-Barrel Back Up Current-Limiting Medium Voltage Motor Protection Fuse, 390 A, 4800 VAC, 63 kA Interrupt, Class: R
Mersen AMP-TRAP A480R18R-1HE 2-Barrel Back Up Current-Limiting Medium Voltage Motor Protection Fuse, 390 A, 4800 VAC, 63 kA Interrupt, Class: R
MPN A480R18R-1HE
ASPN FERA480R18R1HE
UPC 782001801496
Description
Features
- The AMP-TRAP® R-rated fuses are UL recognized
- Ferrule mounting for standard clips and interchangeability with other brands of fuses
- Current limiting for superior equipment protection
- Metal embossed catalog number and manufacturing date for lasting identification
- Hook eye for non load-break isolation by hook stick
- On all other 3 in barrel if a hook eye is required, use the operating eye 9F61AAW612
- Blown fuse indicator to give positive identification of open fuse
- Amp-Trap® 3 in barrel 2 lb tripped force - 1/2 in
- Silver plated copper contact
- 12-3/4 in clip centers
- 18R size
Specifications
GTIN: 00782001801496
UNSPSC: 39121626
Country of Origin: Mexico
| Weight | 1 lbs |
|---|---|
| Class | R |
| Mounting Type | Clip |
| Amperage Rating | 390 A |
| BABA Compliant | No |
| Indicating/Non-Indicating | Indicating |
| Series | A480R |
| Body Size | 3 in Dia x 16.13 in L |
| Voltage Rating | 4800 VAC |
| Terminal Type | Ferrule |
| Interrupt Rating | 63 kA |
| Type | 2-Barrel Back Up Current-Limiting Medium Voltage |
| Material | Epoxy |
| Sold as | EACH |
